SELECT A DIAGRAM

01 - Cabinet


02 - Unit


03 - Air Flow And Control


04 - Installation


05 - Lit/optional

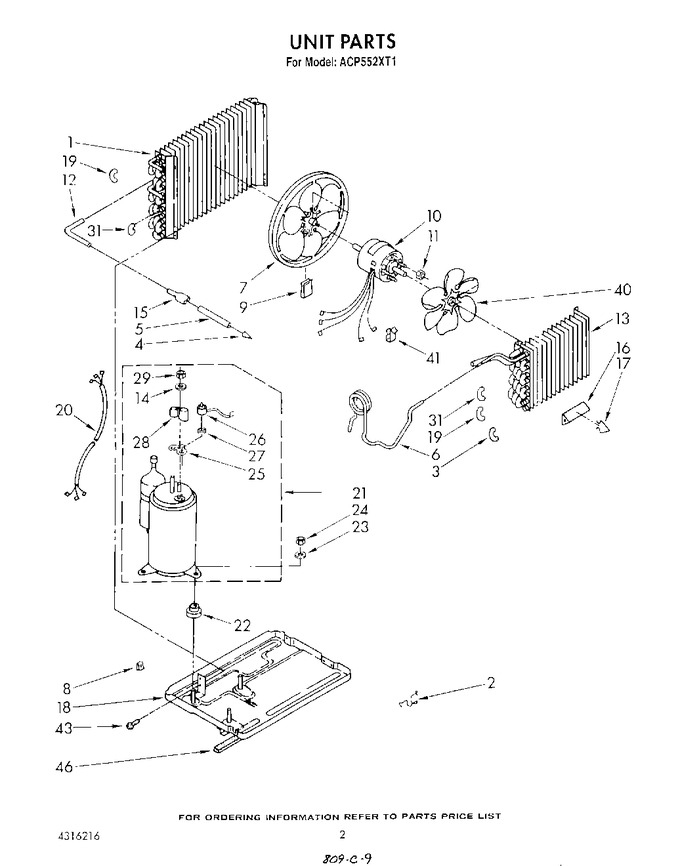

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1155940		Condenser		Appelez-nous	-
2	949634		Clip, Mtg. (2) (base To Front)		Appelez-nous	-
3	1156533		Bend Return		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	1157813		Tube, Restrictor		Appelez-nous	-
7	1155859		Blade, Fan (condenser)		Appelez-nous	-
8	1156028		Clip, Speed		Appelez-nous	-
9	485334		Clip, Balancing		Appelez-nous	-
10	1156828		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	1155519		Tube, 90~ Connect		Appelez-nous	-
13	1157726		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
15	947364		Tube, Flow Divider		Appelez-nous	-
16	996773		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	950013		Base		Appelez-nous	-
19	708531		Bend, Return Evaporator (3) Condenser (13)		Appelez-nous	-
20	484136		Harness, Wiring		Appelez-nous	-
21	4210324		Compressor		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	489108		Washer (3)		Appelez-nous	-
24	858122		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	1156601		Overload		Appelez-nous	-
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
29	WP950027		Nut Hex 5 - 8 Mm.   (Replaces: 950027)				$ 5.20
31	708532		Bend, Return Evaporator (7) Condenser (4)		Appelez-nous	-
40	1156923		Fan, Blade Evaporator		Appelez-nous	-
41	947072		Clamp, Wiring		Appelez-nous	-
43	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
43	488481		Screw, S.m. No.10 X 3/8		Appelez-nous	-
46	857923		Seal, Base (r.s.)		Appelez-nous	-
	LIT1157886		Sheet, Tech And Wiring Diagram		Appelez-nous	-
	LIT4316216		List, Repair Parts		Appelez-nous	-
	LIT1156446		Guide, Energy		Appelez-nous	-
	LIT1155970		Guide, Use And Care		Appelez-nous	-
	LIT1155974		Installation, Instructions		Appelez-nous	-
