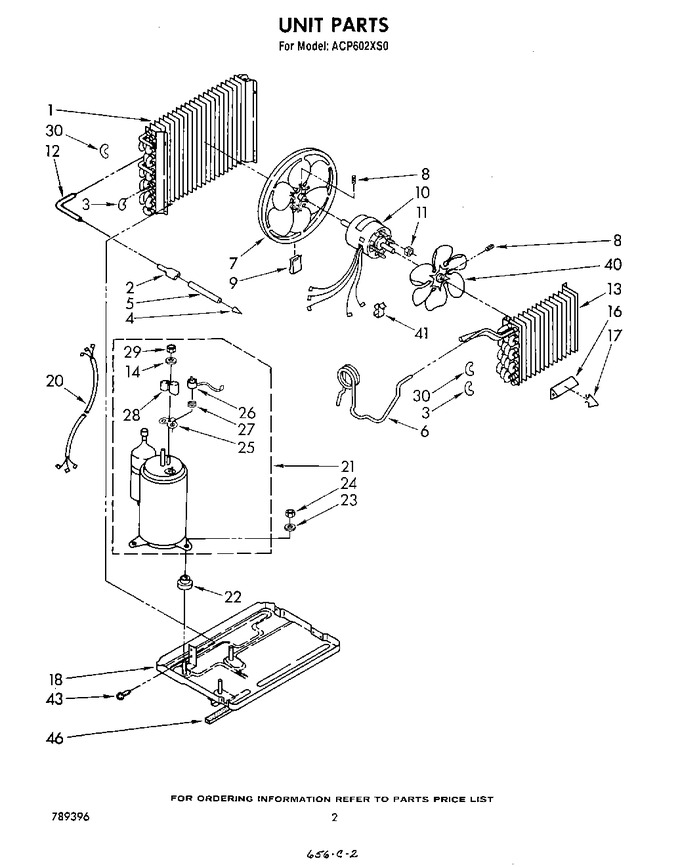

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	951224		Condenser		Appelez-nous	-
2	947364		Tube, Flow Divider		Appelez-nous	-
3	855199		Bend, Return Condenser (15) Evaporator (13)		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	951786		Tube, Restrictor (length 26.0``)		Appelez-nous	-
7	995387		Blade, Fan (condenser)		Appelez-nous	-
8	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
9	876034		Clip, Balancing		Appelez-nous	-
10	951781		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	950814		Tube, 90~ Connect (1)		Appelez-nous	-
13	951782		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
16	996773		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	950013		Base		Appelez-nous	-
20	484136		Harness, Wiring		Appelez-nous	-
21	876808		Compressor		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	489108		Washer (3)		Appelez-nous	-
24	858122		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	WP1161170		Overload   (Replaces: 951779)				$ 84.72
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
29	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
30	854624		Bend, Return Condenser (2) Evaporator (3)		Appelez-nous	-
40	997889		Fan, Blade Evaporator		Appelez-nous	-
41	852451		Clamp, Wiring		Appelez-nous	-
43	488481		Screw, Repair		Appelez-nous	-
43	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
46	993191		Seal, Base (r.s.)		Appelez-nous	-
