SELECT A DIAGRAM

02 - Unit , Literature

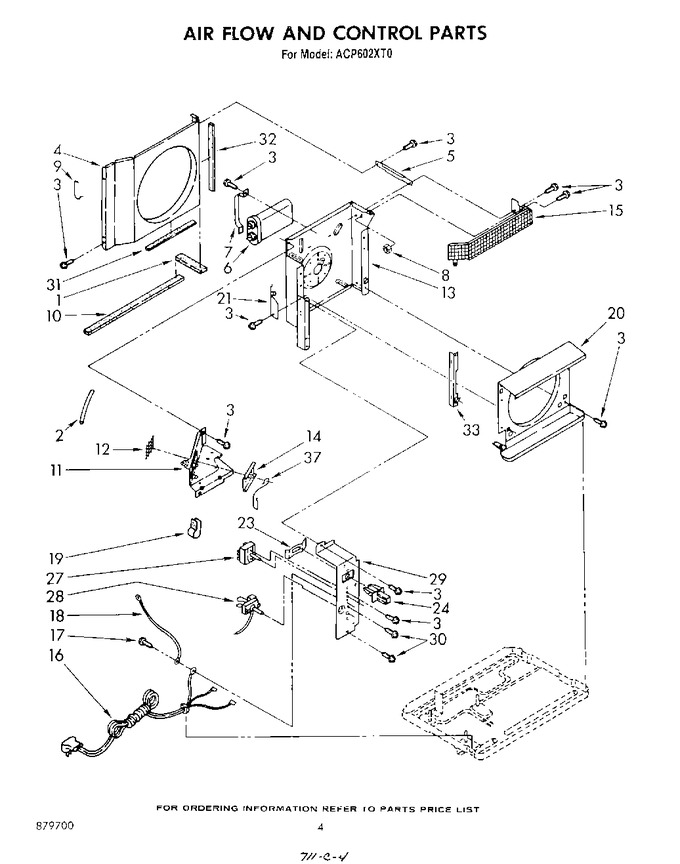

03 - Airflow And Control


04 - Cabinet


05 - Accessory Kit


06 - Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	646870		Seal, Condensate		Appelez-nous	-
2	212643		Sealer, Tube   (Replaces: 859934)			Immediately	$ 86.78
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
3	488481		Screw, Repair		Appelez-nous	-
4	646297		Shroud, Condenser		Appelez-nous	-
5	649879		Support, Unit		Appelez-nous	-
6	952739		Capacitor, Running		Appelez-nous	-
7	856105		Bracket, Capacitor		Appelez-nous	-
8	486288		Nut, Speed No.8a		Appelez-nous	-
9	477442		Clip, Shroud		Appelez-nous	-
10	WP854334		Seal, Strip   (Replaces: 852063)				$ 12.55
11	646130		Extension, Dividing Wall		Appelez-nous	-
12	856929		Screen, Exhaust Door		Appelez-nous	-
13	859822		Wall, Dividing Assembly		Appelez-nous	-
14	646134		Door, Exhaust		Appelez-nous	-
15	996685		Guard, Evaporator Impeller		Appelez-nous	-
16	647216		Cord, Appliance		Appelez-nous	-
17	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
18	856094		Wire, Ground		Appelez-nous	-
19	947072		Clamp, Wiring (2)		Appelez-nous	-
20	996748		Shroud, Evaporator		Appelez-nous	-
21	859890		Plate, Dividing Wall		Appelez-nous	-
23	853565		Spring, Retainer		Appelez-nous	-
24	953066		Actuator, Exhaust Door		Appelez-nous	-
27	950283		Switch, Rotary		Appelez-nous	-
28	949411		Control, Temperature		Appelez-nous	-
29	993398		Panel, Control		Appelez-nous	-
30	488734		Screw, 6-32 X .175		Appelez-nous	-
31	859931		Seal, Condenser		Appelez-nous	-
32	857923		Seal, Condenser (r.s.)		Appelez-nous	-
33	855502		Bracket, Evaporator Mounting		Appelez-nous	-
37	950255		Arm, Door		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
