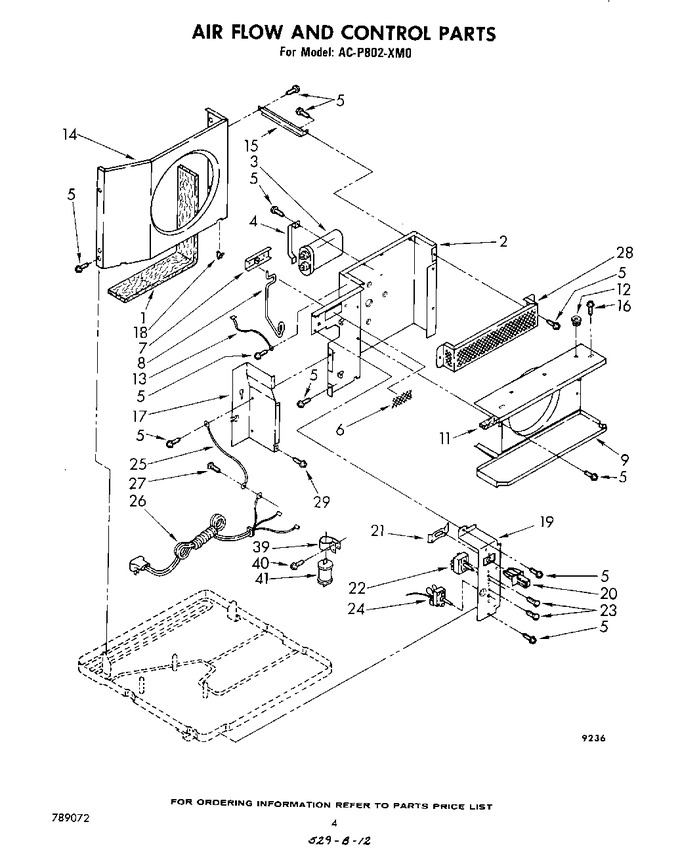

03 - Airflow And Control


04 - Cabinet


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
2	950586		Wall, Dividing (requires Insulation Part No. 469938)		Appelez-nous	-
3	948643		Capacitor, Running		Appelez-nous	-
4	475844		Bracket, Running Capacitor		Appelez-nous	-
5	WP489069		Screw, Sm No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
6	856929		Screen, Exhaust Door		Appelez-nous	-
7	644206		Door, Exhaust		Appelez-nous	-
8	856042		Arm, Exhaust Door		Appelez-nous	-
9	948219		Shroud, Evaporator (includes Illus. 11)		Appelez-nous	-
11	948220		Insulation, Evaporator Cover		Appelez-nous	-
12	487808		Fastener, Snap		Appelez-nous	-
13	857568		Wire, Capacitor Ground		Appelez-nous	-
14	856037		Shroud, Condenser		Appelez-nous	-
15	858663		Support, Unit (2)		Appelez-nous	-
16	WP488729		Screw, Sems Sm No.8 X 1/2a (2)   (Replaces: 487910)			Immediately	$ 7.45
17	994560		Extension, Dividing Wall		Appelez-nous	-
18	644401		Clip, Retainer		Appelez-nous	-
19	996966		Panel, Control		Appelez-nous	-
20	947468		Actuator, Exhaust Door		Appelez-nous	-
21	858765		Retainer, Dent Spring		Appelez-nous	-
22	950283		Switch, Rotary		Appelez-nous	-
23	488734		Screw, Machine 6-32 X .175 (4)		Appelez-nous	-
24	949431		Control, Tempetature		Appelez-nous	-
25	856094		Wire, Ground		Appelez-nous	-
26	647216		Cable, Appliance		Appelez-nous	-
27	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
28	856912		Guard, Evaporator Impeller		Appelez-nous	-
29	488624		Screw, Sm No.8 X 3/8		Appelez-nous	-
39	949176		Clamp, Mounting		Appelez-nous	-
40	WP965173		Screw, Sm 8 X 3/8   (Replaces: 487415)			Immediately	$ 10.68
41	789072		List, Repair Parts		Appelez-nous	-
41	950659		Sheet, Tech		Appelez-nous	-
41	950662		Guide, Consumer Buy		Appelez-nous	-
41	950318		Guide, Use & Care		Appelez-nous	-
41	950661		Guide, Energy		Appelez-nous	-
41	47261		Wire, Black (25 Ft.)		Appelez-nous	-
41	949177		Thermistor		Appelez-nous	-
41	649939		Insulation, Cabinet (5/8`` X 13`` X 25-11/16``)		Appelez-nous	-
41	469938		Insulation, Fiberglass (1/4`` X 24`` X 48``)		Appelez-nous	-
41	212643		Sealer, Gum Type (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
41	WP279368		Cement, Attach Insulation)   (Replaces: 797403)			Immediately	$ 104.81
41	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
41	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
41	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
41	47263		Wire, White (25 Ft.)		Appelez-nous	-
41	484184		Cover, Winter				$ 64.85
