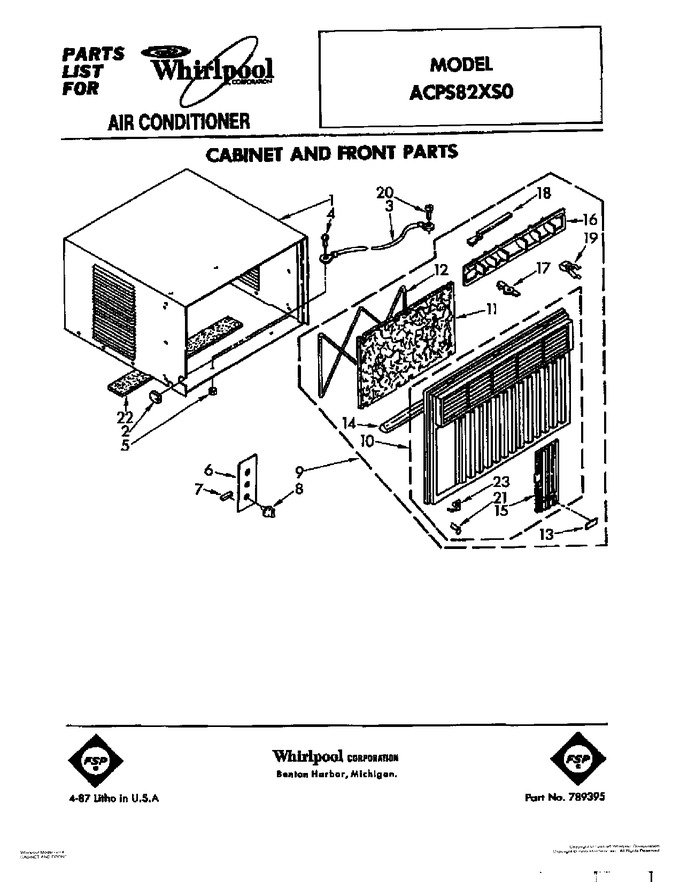

01 - Cabinet And Front


02 - Unit, Lit/optional


03 - Air Flow And Control


04 - Accessory Kit


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	858828		Cabinet		Appelez-nous	-
2	647849		Grommet, Cable		Appelez-nous	-
3	857017		Wire, Ground		Appelez-nous	-
4	488853		Screw, Mach 8-32 X 3/8		Appelez-nous	-
5	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
6	1155395		Escutcheon, Control		Appelez-nous	-
7	470036		Spacer, Plate (3)		Appelez-nous	-
8	947264		Knob, Control		Appelez-nous	-
9	1155387		Front Assembly, Cabinet (complete)		Appelez-nous	-
10	1155388		Front, Cabinet		Appelez-nous	-
11	852413		Filter, Air		Appelez-nous	-
12	476707		Retainer, Filter		Appelez-nous	-
13	951927		Plate, Name		Appelez-nous	-
14	WP854334		Seal, Cabinet Front   (Replaces: 647913)				$ 12.55
14	647914		Seal, Cabinet Front		Appelez-nous	-
15	1155390		Door, Control		Appelez-nous	-
16	647798		Louver, Vertical		Appelez-nous	-
17	644165		Handle, Vertical Louver (2)		Appelez-nous	-
18	647799		Link, Vert. Louver (2)		Appelez-nous	-
19	641484		Spring, Detent (2)				$ 150.14
20	488854		Screw, St 8-32 X 3/8		Appelez-nous	-
21	649949		Spring, Catch		Appelez-nous	-
22	647854		Seal, Cabinet Bottom		Appelez-nous	-
22	WP854334		Seal, Cabinet (back)   (Replaces: 858839)				$ 12.55
23	649943		Pin. Hinge (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
