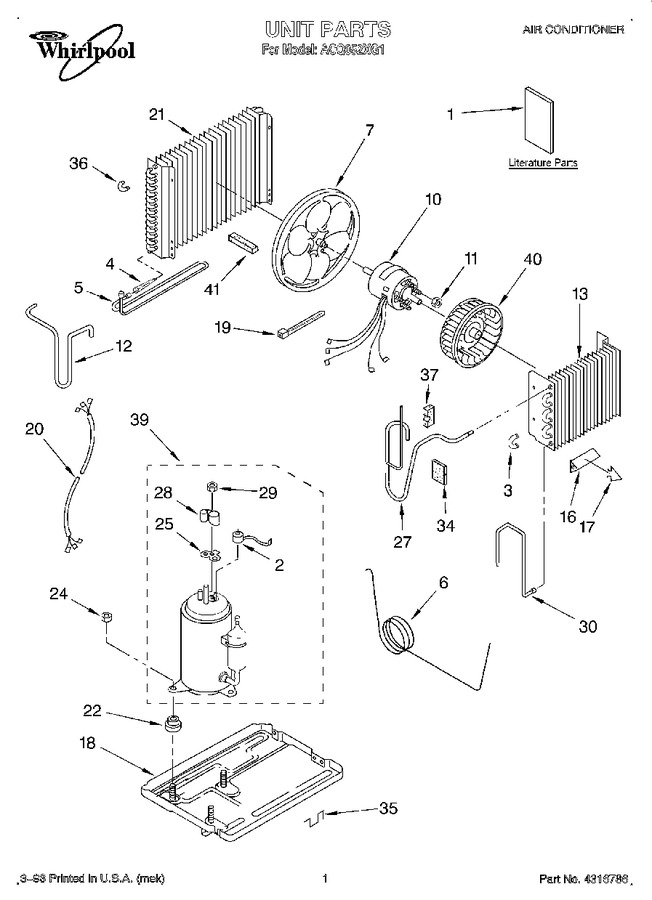

SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow And Control


03 - Cabinet


04 - Optional


05 - Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1168453		Overload		Appelez-nous	-
3	708531		Bend, Return (3)		Appelez-nous	-
4	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
5	1182034		Tube, Wet Loop		Appelez-nous	-
6	1181779		Tube, Restrictor		Appelez-nous	-
7	1158524		Blade, Fan		Appelez-nous	-
10	1181773		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	1181778		Tube, Discharge		Appelez-nous	-
13	1169520		Evaporator		Appelez-nous	-
16	1166782		Anticipator		Appelez-nous	-
17	642080		Clip, Anticipator		Appelez-nous	-
18	1181851		Base		Appelez-nous	-
19	WPW10339879		Cable Tie   (Replaces: 857547)				$ 7.47
20	484136		Harness, Wiring		Appelez-nous	-
21	1169528		Condenser		Appelez-nous	-
22	1181845		Grommet (3)		Appelez-nous	-
24	1181804		Locknut (3)		Appelez-nous	-
25	1168449		Gasket, Terminal Cover		Appelez-nous	-
27	1181763		Tube, Suction		Appelez-nous	-
28	1168454		Cover, Terminal		Appelez-nous	-
29	1168451		Nut Hex 5 - 8 Mm.		Appelez-nous	-
30	1181838		Tube, Feeder (restrictor)		Appelez-nous	-
34	1159443		Seal, Foam		Appelez-nous	-
35	949634		Clip, Mtg (2) (cabinet-front)		Appelez-nous	-
36	708532		Bend, Return (11)		Appelez-nous	-
37	1164551		Sealer, Tube		Appelez-nous	-
39	1181780		Compressor Assembly		Appelez-nous	-
40	1169514		Wheel, Blower		Appelez-nous	-
41	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
	LIT1172258		Wiring Diagram		Appelez-nous	-
	LIT1172396		Owners Manual		Appelez-nous	-
	LIT1172389		Tech Sheet		Appelez-nous	-
