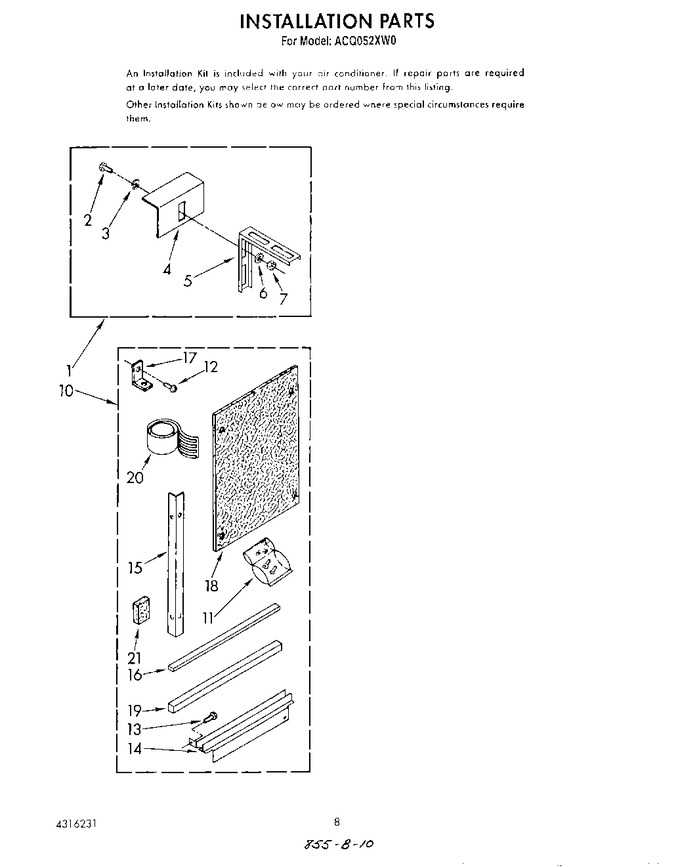

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	485678		Kit, Outside Sill (for Additional Support)		Appelez-nous	-
2	488750		Bolt, 1/4-20 X 3/4 (6)		Appelez-nous	-
3	488808		Washer, Flat (6)		Appelez-nous	-
4	645515		Bracket, Sill (2)		Appelez-nous	-
5	485466		Bracket, Rail (2)		Appelez-nous	-
6	486009		Washer, Lock (6)		Appelez-nous	-
7	486035		Nut, 1/4-20 (6)		Appelez-nous	-
10	994818		Kit, Window Installation		Appelez-nous	-
11	858358		Bag, Accessory		Appelez-nous	-
12	488255		Screw, Wood No.8 X 3/8 (3)		Appelez-nous	-
13	WP965173		Screw, S.m. No.8 X 3/8 (8)   (Replaces: 488017)			Immediately	$ 10.68
14	645563		Bracket, Mounting (left Side)		Appelez-nous	-
14	645562		Bracket, Mounting ((right Side))		Appelez-nous	-
15	646988		Angle, Side		Appelez-nous	-
16	856979		Strip, Seal		Appelez-nous	-
17	644228		Bracket, Window Lock		Appelez-nous	-
18	648854		Board, Filler (2)		Appelez-nous	-
19	469877		Seal, Meeting Rail		Appelez-nous	-
20	212643		Sealer, Gum   (Replaces: 470168)			Immediately	$ 86.78
21	995274		Spacer, Block		Appelez-nous	-
	LIT485706		Instructions, Installation (outside Sill Kit)		Appelez-nous	-
