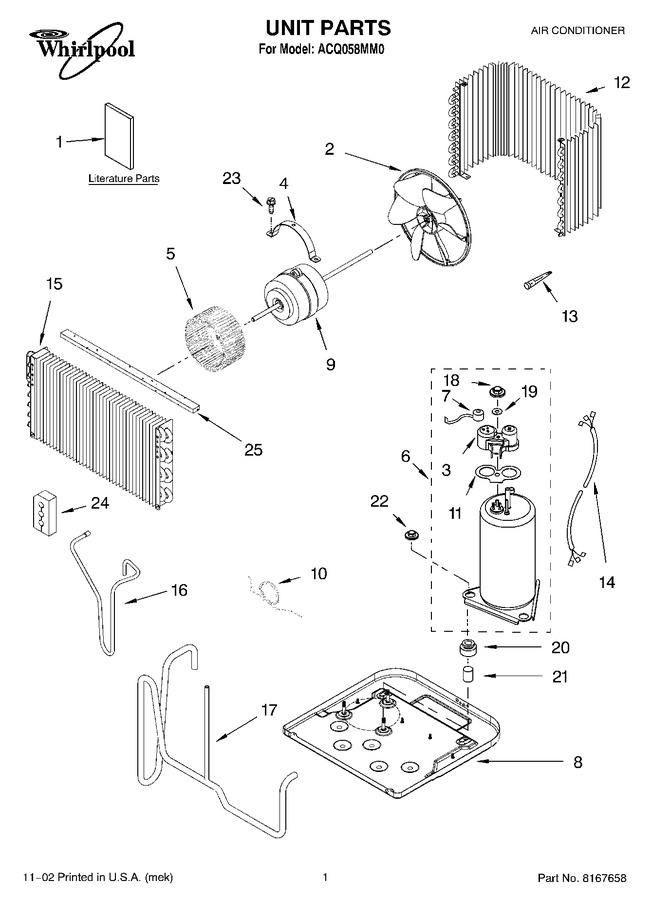

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT4312658		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT4312637		Literature Parts (guide, Energy)		Appelez-nous	-
1	LIT4312640		Literature Parts (wiring Diagram Label)		Appelez-nous	-
2	8040030		Fan, Condenser				$ 16.49
3	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
4	4312602		Clip, Fan Motor		Appelez-nous	-
5	4312606		Wheel, Blower				$ 11.97
6	4312608		Compressor		Appelez-nous	-
7	4312612		Overload		Appelez-nous	-
8	4312618		Base		Appelez-nous	-
9	4312638		Motor, Fan		Appelez-nous	-
10	4312652		Tube, Capillary		Appelez-nous	-
11	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
12	4312633		Condenser		Appelez-nous	-
13	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
14	4312649		Harness, Wiring		Appelez-nous	-
15	4312596		Evaporator		Appelez-nous	-
16	4312654		Tube, Discharge		Appelez-nous	-
17	4312655		Tube, Suction		Appelez-nous	-
18	WP950027		Nut   (Replaces: 950027)				$ 5.20
19	950037		Gasket, Nut		Appelez-nous	-
20	950212		Grommet		Appelez-nous	-
21	8040384		Sleeve, Compressor Grommet		Appelez-nous	-
22	8040096		Locknut		Appelez-nous	-
23	8040199		Screw		Appelez-nous	-
24	4312660		Insulator, Tube		Appelez-nous	-
25	WP854334		Seal   (Replaces: 4312605)				$ 12.55
