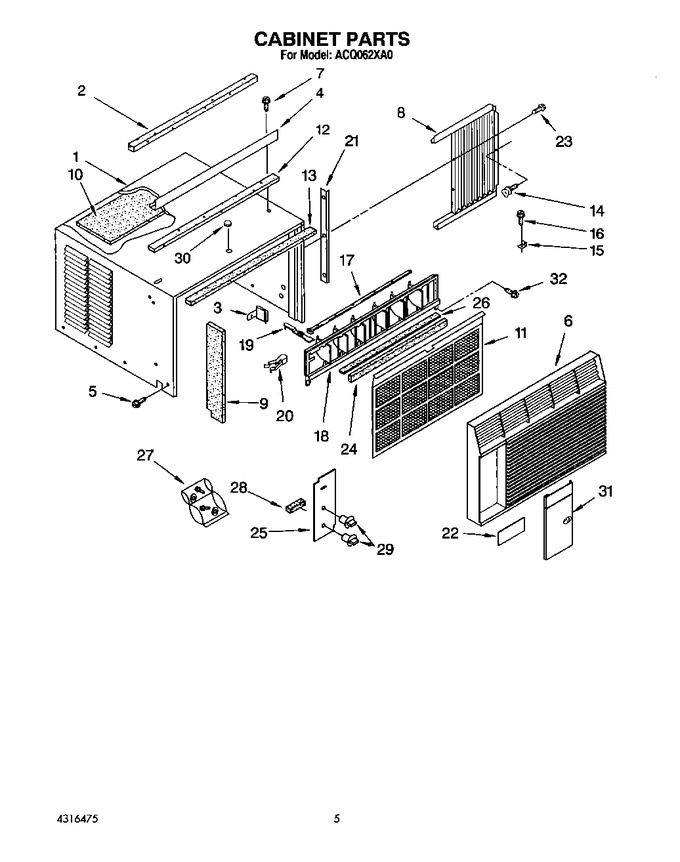

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157939		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	1158294		Clip		Appelez-nous	-
4	993849		Channel, Top		Appelez-nous	-
5	WP489069		Screw, St 8-32 X 3/8 (6)   (Replaces: 1157158)			Immediately	$ 7.56
6	1162156		Front, Cabinet		Appelez-nous	-
7	WP308685		Screw, (2)   (Replaces: 488720)			Immediately	$ 7.08
8	1162963		Curtain (l.s.)		Appelez-nous	-
8	1162961		Curtain (r.s.)		Appelez-nous	-
9	950169		Insulation, Side		Appelez-nous	-
10	1157942		Insulation, Top		Appelez-nous	-
11	1162158		Filter				$ 43.94
12	856990		Seal, Strip		Appelez-nous	-
13	1159283		Seal		Appelez-nous	-
14	475581		Thumbscrew		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	645684		Link, Louver (2)		Appelez-nous	-
18	1158325		Louver, Vertical		Appelez-nous	-
19	648626		Handle, Louver		Appelez-nous	-
20	641484		Spring, Detent				$ 150.14
21	646160		Retainer, Curtain (2)		Appelez-nous	-
22	1159297		Nameplate		Appelez-nous	-
23	1161561		Screw (4)		Appelez-nous	-
24	855238		Seal, Vertical Louver		Appelez-nous	-
25	1162164		Escutcheon		Appelez-nous	-
26	WP854334		Seal, Louver   (Replaces: 949090)				$ 12.55
27	476180		Bag, Accessory		Appelez-nous	-
28	WP854334		Spacer, (2)   (Replaces: 646318)				$ 12.55
29	1159423		Knob (2)		Appelez-nous	-
30	1157126		Cover, Hole		Appelez-nous	-
31	1162157		Door, Control		Appelez-nous	-
32	1159222		Screw, Front		Appelez-nous	-
