SELECT A DIAGRAM

01 - Unit, Lit/optional

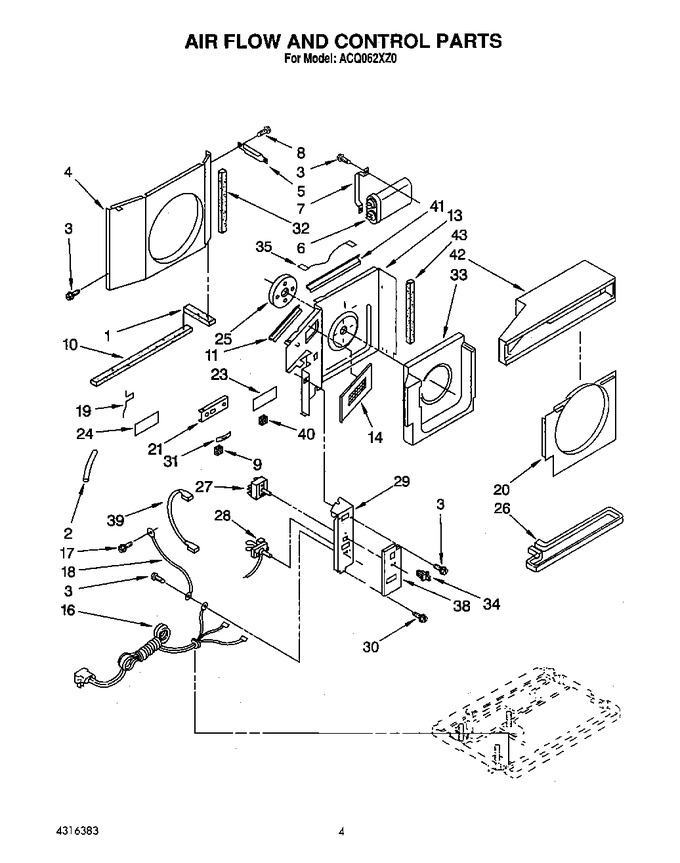

02 - Air Flow And Control


03 - Cabinet


04 - Installation Parts


05 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	646870		Seal, Condensate		Appelez-nous	-
2	1160617		Sealer, Tube		Appelez-nous	-
3	488624		Screw, 8 X 3/8		Appelez-nous	-
4	1157908		Shroud, Condenser		Appelez-nous	-
5	649879		Support, Unit		Appelez-nous	-
6	952739		Capacitor, Running		Appelez-nous	-
7	856105		Bracket, Capacitor		Appelez-nous	-
8	1161561		Screw 3/8		Appelez-nous	-
9	1159443		Seal, Foam		Appelez-nous	-
10	WP854334		Seal, Strip   (Replaces: 852063)				$ 12.55
11	1161208		Edge, Guard Seal		Appelez-nous	-
13	1158284		Wall, Dividing Assembly		Appelez-nous	-
14	1162876		Screen/insul. Asy		Appelez-nous	-
16	647216		Cord, Appliance		Appelez-nous	-
17	1159222		Screw, 8-32 X 3/8		Appelez-nous	-
18	856094		Wire, Ground		Appelez-nous	-
19	1157947		Arm, Exhaust Door		Appelez-nous	-
20	1159348		Shroud, Evaporator		Appelez-nous	-
21	1158280		Door, Exhaust		Appelez-nous	-
23	1159175		Spacer		Appelez-nous	-
24	1158323		Barrier Protective		Appelez-nous	-
25	1158469		Insulation, Motor		Appelez-nous	-
26	1159428		Pan, Condensate		Appelez-nous	-
27	1162168		Switch, Rotary		Appelez-nous	-
28	950403		Control, Temperature		Appelez-nous	-
29	1158285		Panel, Control		Appelez-nous	-
30	488734		Screw, 6-32 X .175		Appelez-nous	-
31	858765		Spring, Detent		Appelez-nous	-
32	857923		Seal, Condenser (r.s.)		Appelez-nous	-
33	1159346		Housing, Air		Appelez-nous	-
34	953066		Actuator, Exh.door		Appelez-nous	-
35	1160302		Wire, Lead		Appelez-nous	-
38	1157945		Insulation, Control Panel		Appelez-nous	-
39	1158937		Wire, Jumper		Appelez-nous	-
40	1158295		Seal, Foam		Appelez-nous	-
41	1161209		Edge, Guard Seal		Appelez-nous	-
42	1159349		Hood, Air Housing		Appelez-nous	-
43	WP854334		Seal, Side   (Replaces: 1158850)				$ 12.55

    View Diagram in Separate Window       Print Part List
