SELECT A DIAGRAM

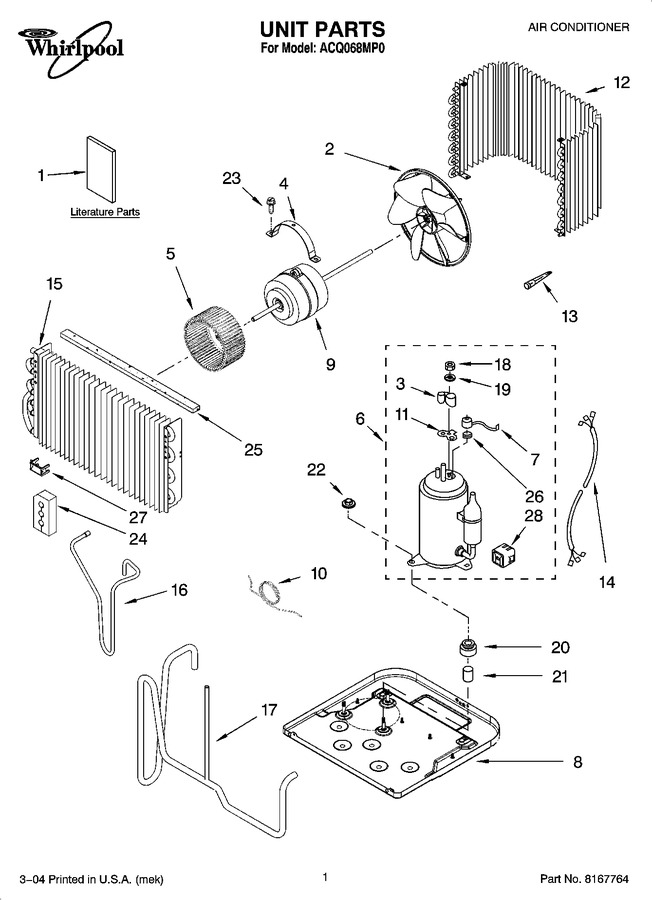

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8209187		Literature Parts (wiring Diagram Label)		Appelez-nous	-
1	LIT8209184		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8209186		Literature Parts (guide, Energy)		Appelez-nous	-
2	326026600		Fan, Condenser				$ 11.91
3	1185792		Cover, Terminal		Appelez-nous	-
4	4312602		Clip, Fan Motor		Appelez-nous	-
5	4312606		Wheel, Blower				$ 11.97
6	326034037		Compressor		Appelez-nous	-
7	326033876		Overload		Appelez-nous	-
8	4312618		Base		Appelez-nous	-
9	326032377		Motor, Fan		Appelez-nous	-
10	326032352		Tube, Capillary		Appelez-nous	-
11	1185793		Gasket, Terminal Cover		Appelez-nous	-
12	326037055		Condenser		Appelez-nous	-
13	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
14	4312649		Harness, Wiring		Appelez-nous	-
15	4312596		Evaporator		Appelez-nous	-
16	326032349		Tube, Discharge		Appelez-nous	-
17	326034040		Tube, Suction		Appelez-nous	-
18	W10833054		Nut   (Replaces: 1186030)		Appelez-nous	-
19	1185794		Washer		Appelez-nous	-
20	8209181		Grommet		Appelez-nous	-
21	326014584		Sleeve, Compressor Grommet		Appelez-nous	-
22	8040096		Locknut		Appelez-nous	-
23	8040199		Screw		Appelez-nous	-
24	4312660		Insulator, Tube		Appelez-nous	-
25	WP854334		Seal   (Replaces: 4312605)				$ 12.55
26	1185795		Spring, Overload		Appelez-nous	-
27	4312600		Clip, Anticipator		Appelez-nous	-
28	8209183		Start Device		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
