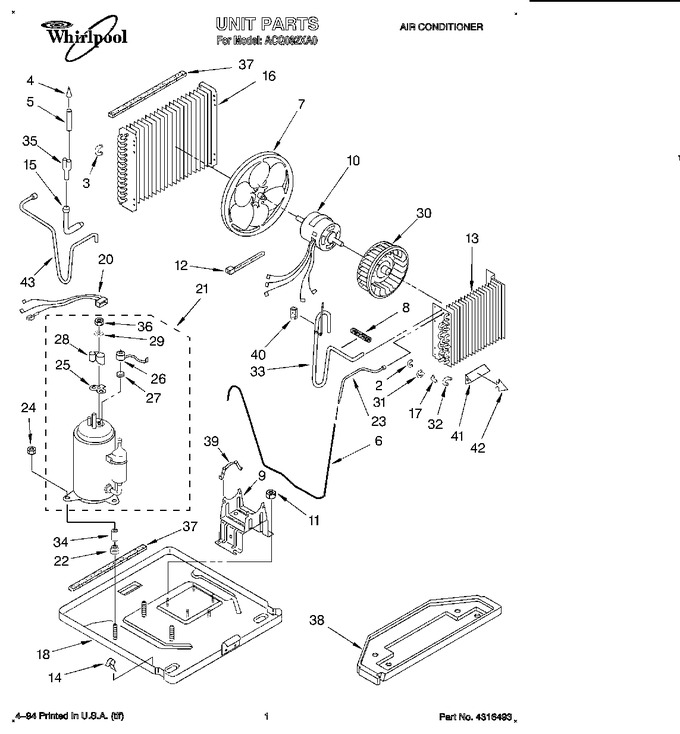

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	855199		Bend, Return Evaporator (7)		Appelez-nous	-
3	708532		Bend, Return Condenser (13)		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	950850		Tube, Outlet (includes Illus. 4)		Appelez-nous	-
6	1164067		Tube, Restrictor		Appelez-nous	-
7	1156979		Blade, Fan (condenser)				$ 61.53
8	1165440		Seal, Suction Tube		Appelez-nous	-
9	1156961		Bracket, Fan Motor		Appelez-nous	-
10	1165639		Motor, Fan		Appelez-nous	-
11	WP488130		Keps Nut (4)   (Replaces: 1160408)				$ 6.59
12	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
13	1163157		Evaporator		Appelez-nous	-
14	471088		Clamp, Tube		Appelez-nous	-
15	1163715		Tube, 90~ Connect		Appelez-nous	-
16	1157163		Condenser		Appelez-nous	-
17	854624		Tube, Return (4)		Appelez-nous	-
18	1162623		Base		Appelez-nous	-
20	1158044		Harness, Wiring (compressor Service)		Appelez-nous	-
21	4317916		Compressor   (Replaces: 1158043)		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	1164066		Tube, Feeder Restrictor		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	WP1161170		Overload   (Replaces: 1161170)				$ 84.72
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
29	950037		Washer		Appelez-nous	-
30	1163571		Wheel, Blower (evaporator)		Appelez-nous	-
31	953169		Bend, Return Three-way (2)		Appelez-nous	-
32	855644		Bend, Return (1)		Appelez-nous	-
33	1164857		Tube, Suction		Appelez-nous	-
34	858148		Sleeve (3)		Appelez-nous	-
35	947364		Tube, Flow Divider		Appelez-nous	-
36	WP950027		Nut, Mounting   (Replaces: 950027)				$ 5.20
37	1157622		Seal, Condenser Bottom		Appelez-nous	-
37	WP854334		Seal, Condenser (top)   (Replaces: 1157623)				$ 12.55
38	1158519		Pan, Drain		Appelez-nous	-
39	WPY015825		Clip, Motor (2)   (Replaces: 1157015)				$ 22.65
40	1164619		Dampener, Tube		Appelez-nous	-
41	996773		Anticipator		Appelez-nous	-
42	475577		Clip, Anticipator		Appelez-nous	-
43	1156995		Tube, Discharge		Appelez-nous	-
	LIT1157669		Manual, Use & Care Guide		Appelez-nous	-
	LIT1157635		Wiring Diagram		Appelez-nous	-
	LIT1157636		Tech Sheet		Appelez-nous	-
	LIT1165646		Instructions, Installation		Appelez-nous	-
