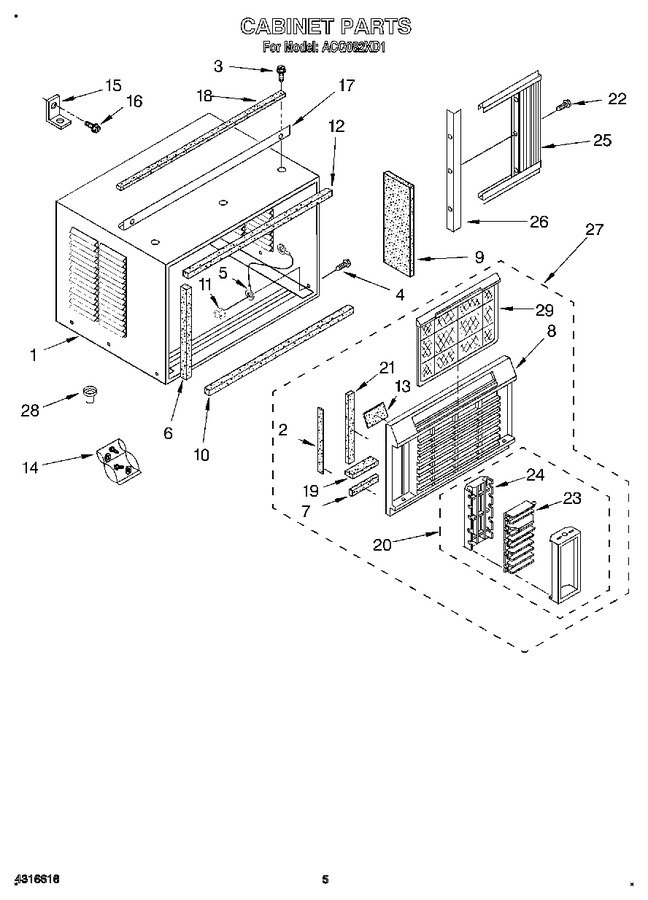

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163055		Cabinet		Appelez-nous	-
2	1159079		Seal, Front - Sides (2)		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
4	488853		Screw, 8-32 X 3/8		Appelez-nous	-
5	856094		Wire, Ground		Appelez-nous	-
6	1159254		Seal, Side (2)		Appelez-nous	-
7	1161746		Seal, (2)		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1161748		Insulation, Cabinet Side (2)		Appelez-nous	-
10	1159289		Seal, Bottom		Appelez-nous	-
11	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
12	1158593		Seal, Cabinet Top		Appelez-nous	-
13	1159081		Seal, Front		Appelez-nous	-
14	1157654		Accessory, Bag		Appelez-nous	-
15	488255		Screw, Wood		Appelez-nous	-
16	644228		Bracket, Window Lock		Appelez-nous	-
17	1157196		Chanel, Top		Appelez-nous	-
18	469877		Seal, Meeting Rail		Appelez-nous	-
19	1161205		Seal, Front Eps		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1161747		Seal, Side (2)		Appelez-nous	-
22	1161561		Screw 3/8		Appelez-nous	-
23	1159333		Louver, Horizontal		Appelez-nous	-
24	1156975		Ribs, Vertical		Appelez-nous	-
25	1164405		Curtain (left Side)		Appelez-nous	-
25	1164406		Curtain (right Side)		Appelez-nous	-
26	644224		Retainer, Curtain (2)		Appelez-nous	-
27	1166519		Front, Complete		Appelez-nous	-
28	997285		Cup, Condensate Drain		Appelez-nous	-
29	1166496		Filter				$ 52.49
