SELECT A DIAGRAM

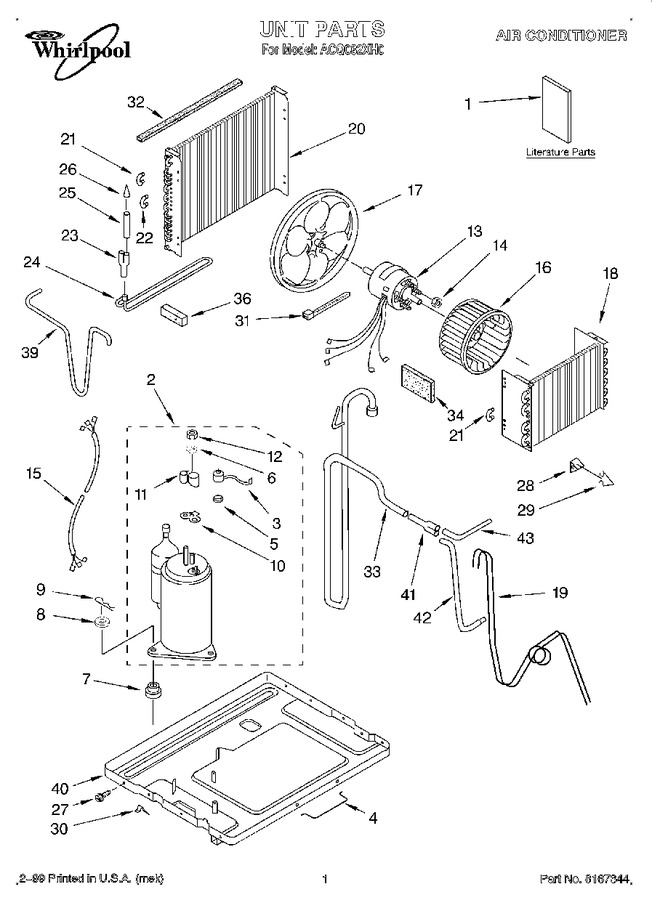

01 - Unit, Literature
02 - Airflow And Control
03 - Cabinet
04 - Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1182584 | Use & Care Guide |
|
- | |||||
| 1 | LIT8031275 | Literature Parts (wiring Diagram) |
|
- | |||||
| 2 | 4317916 | Compressor (Replaces: 1158043) |
|
- | |||||
| 3 | WP1161170 | Overload (Replaces: 1161170) |
|
$ 84.72 | |||||
| 4 | 8031320 | Handle, Base |
|
- | |||||
| 5 | 950032 | Spring, Overload |
|
- | |||||
| 6 | 950037 | Gasket, Nut |
|
- | |||||
| 7 | 950212 | Grommet |
|
- | |||||
| 8 | 8011418 | Washer, Nylon |
|
- | |||||
| 9 | 8011398 | Clip, Compressor |
|
- | |||||
| 10 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 11 | WP950036 | Cover, Terminal (Replaces: 950213) |
|
$ 9.83 | |||||
| 12 | WP950027 | Nut, Hex (Replaces: 950027) |
|
$ 5.20 | |||||
| 13 | 8031216 | Motor, Fan |
|
- | |||||
| 14 | WP488130 | Nut, Hex Keps (Replaces: 1160408) |
|
$ 6.59 | |||||
| 15 | 8031579 | Wiring Harness, Compressor |
|
- | |||||
| 16 | 8031154 | Wheel, Blower |
|
- | |||||
| 17 | 1156979 | Blade, Fan |
|
$ 61.53 | |||||
| 18 | 8031218 | Evaporator |
|
- | |||||
| 19 | 8031257 | Tube, Restrictor |
|
- | |||||
| 20 | 8031301 | Condenser |
|
- | |||||
| 21 | 8031222 | Bend, Return Evaporator (4) Condenser (4) |
|
- | |||||
| 22 | 8031223 | Bend, Return Condenser (4) |
|
- | |||||
| 23 | 947364 | Tube, Flow Divider |
|
- | |||||
| 24 | 8031238 | Tube, Wet Loop |
|
- | |||||
| 25 | 1155460 | Tube, Outlet (includes No. 26) |
|
- | |||||
| 26 | 49599 | Strainer, Tube |
|
- | |||||
| 27 | WP489069 | Screw, Sm No.8 X 1/2a (7) (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 28 | 996773 | Anticipator, Temperature |
|
- | |||||
| 29 | 475577 | Clip, Temperature Anticipator |
|
- | |||||
| 30 | 471088 | Clamp, Tube |
|
- | |||||
| 31 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 32 | WP854334 | Seal, Condenser Top (Replaces: 949090) |
|
$ 12.55 | |||||
| 33 | 8031256 | Tube, Suction (includes 41, 42, And 43) |
|
- | |||||
| 34 | 1165440 | Insulation, Suction Tube |
|
- | |||||
| 36 | WP854334 | Seal, Condenser Bottom (Replaces: 859600) |
|
$ 12.55 | |||||
| 39 | 8031258 | Tube, Discharge |
|
- | |||||
| 40 | 8031392 | Base |
|
- | |||||
| 41 | 1159832 | Tube, Flow Divider |
|
- | |||||
| 42 | 8031329 | Tube, Outlet (bottom) |
|
- | |||||
| 43 | 8031289 | Tube, Outlet (top) |
|
- |
