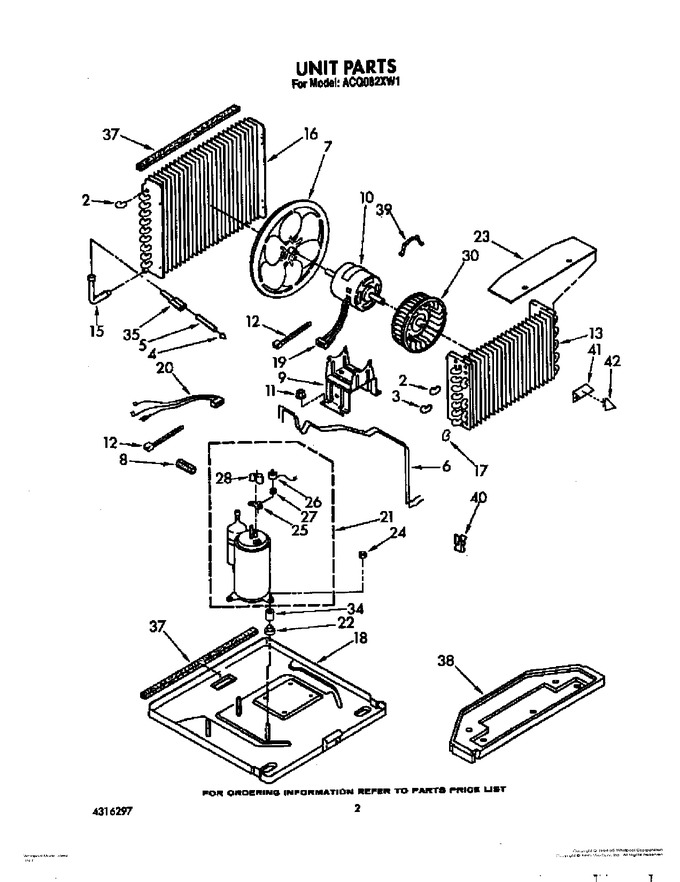

02 - Unit
03 - Airflow And Control
04 - Cabinet
05 - Optional
06 - Installation
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 708532 | Bend, Return Condenser (13) Evaporator (9) |
|
- | |||||
| 3 | 708531 | Bend, Return Evaporator (3) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 951437 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1157191 | Tube, Restrictor |
|
- | |||||
| 7 | 1156979 | Blade, Fan (condenser) |
|
$ 61.53 | |||||
| 8 | 1159284 | Seal, Suction Tube |
|
- | |||||
| 9 | 1156961 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1157655 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Keps Nut (4) (Replaces: 1160408) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 13 | 1158041 | Evaporator |
|
- | |||||
| 15 | 1155580 | Tube, 90~ Connect |
|
- | |||||
| 16 | 1157163 | Condenser |
|
- | |||||
| 17 | 1156329 | Tube, Riser |
|
- | |||||
| 18 | 1159693 | Base |
|
- | |||||
| 19 | 4317827 | Terminal Block |
|
- | |||||
| 20 | 1158044 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 4317916 | Compressor (Replaces: 1159658) |
|
- | |||||
| 22 | 950212 | Grommet (3) |
|
- | |||||
| 23 | 1157173 | Insulation, Evaporator Shroud |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | 1155570 | Gasket, Terminal Cover |
|
- | |||||
| 26 | 1156119 | Overload |
|
- | |||||
| 27 | 1155568 | Spring, Overload |
|
- | |||||
| 28 | 1155569 | Cover, Terminal |
|
- | |||||
| 30 | 1156980 | Wheel, Blower (evaporator) |
|
- | |||||
| 34 | 858148 | Sleeve (3) |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 37 | WP854334 | Seal, Condenser (top) (Replaces: 1157623) |
|
$ 12.55 | |||||
| 37 | 1157622 | Seal, Condenser Bottom |
|
- | |||||
| 38 | 1158519 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 1157015) |
|
$ 22.65 | |||||
| 40 | 855930 | Clamp, Tube |
|
- | |||||
| 41 | 996773 | Anticipator |
|
- | |||||
| 42 | LIT4316297 | Literature Parts (list, Repair Parts) |
|
- | |||||
| 42 | 475577 | Clip, Anticipator |
|
- | |||||
| 42 | LIT1157671 | Instructions, Installation |
|
- | |||||
| 42 | LIT1157669 | Manual, Use & Care Guide |
|
- | |||||
| 42 | LIT1157636 | Tech Sheet |
|
- | |||||
| 42 | LIT1157635 | Wiring Diagram |
|
- |
