SELECT A DIAGRAM

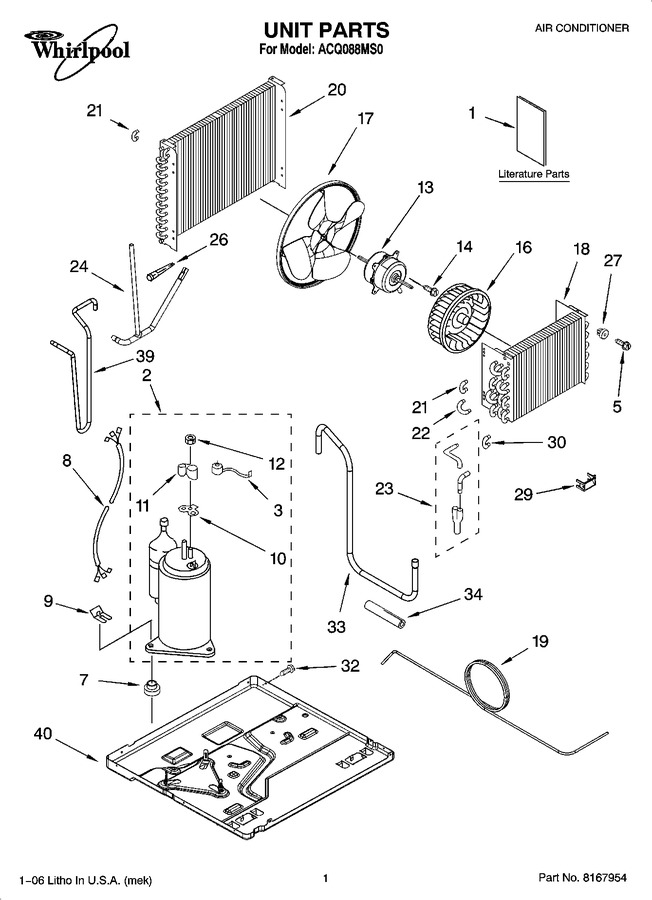

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8209316		Use & Care Guide		Appelez-nous	-
1	8209223		Wiring Diagram		Appelez-nous	-
2	8209232		Compressor		Appelez-nous	-
3	8209235		Overload		Appelez-nous	-
5	WP98165		Screw   (Replaces: 8209240)				$ 7.71
7	8209318		Grommet		Appelez-nous	-
8	8209244		Wiring Harness, Compressor		Appelez-nous	-
9	8209246		Clip, Compressor		Appelez-nous	-
10	8209189		Gasket, Terminal Cover		Appelez-nous	-
11	8209188		Cover, Terminal		Appelez-nous	-
12	W10833054		Nut, Hex   (Replaces: 8209190)		Appelez-nous	-
13	8209257		Motor, Fan		Appelez-nous	-
14	8209258		Screw		Appelez-nous	-
16	8209261		Wheel, Blower		Appelez-nous	-
17	8209262		Blade, Fan				$ 55.02
18	8209264		Evaporator		Appelez-nous	-
19	8209265		Tube, Restrictor		Appelez-nous	-
20	8209268		Condenser		Appelez-nous	-
21	8209269		Bend, Return		Appelez-nous	-
22	8209270		Bend, Return		Appelez-nous	-
23	8209260		Manifold Assembly		Appelez-nous	-
24	8209272		Tube, Outlet		Appelez-nous	-
26	WP1162526		Strainer, Tube   (Replaces: 8209274)				$ 75.98
27	8209275		Grommet, Screw		Appelez-nous	-
29	8209277		Clip, Temperature Anticipator		Appelez-nous	-
30	8209279		Bend, Return		Appelez-nous	-
32	WP489464		Screw   (Replaces: 8209281)			Immediately	$ 7.54
33	8209250		Tube, Suction (includes Item 34)		Appelez-nous	-
34	8209252		Seal, Suction Tube		Appelez-nous	-
39	8209239		Tube, Discharge		Appelez-nous	-
40	8209241		Base		Appelez-nous	-
