SELECT A DIAGRAM

01 - Unit Parts


02 - Air Flow And Control Parts

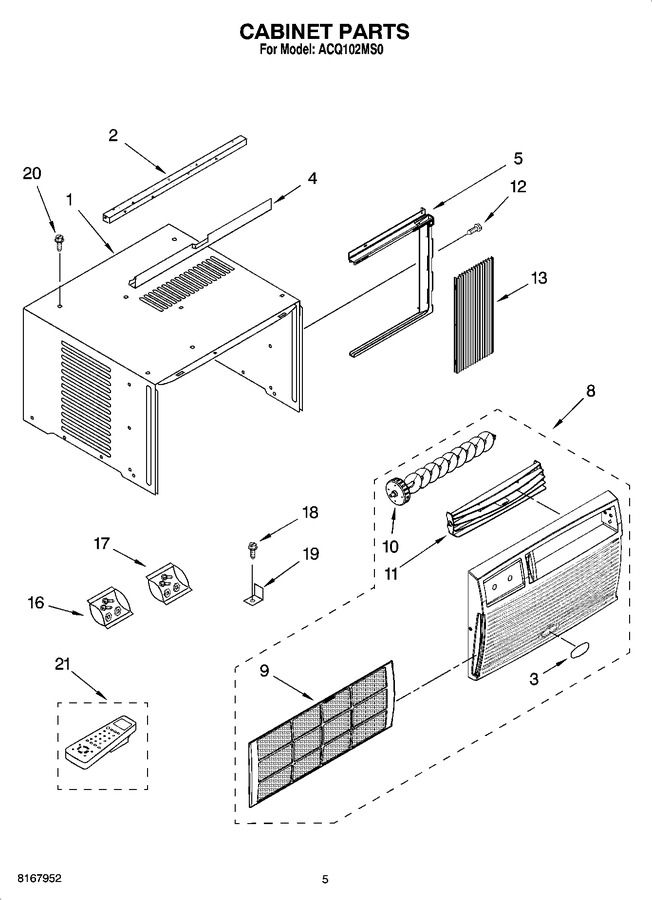

03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8209206		Cabinet		Appelez-nous	-
2	8209207		Seal, Meeting Rail		Appelez-nous	-
3	WP2213265		Nameplate   (Replaces: 8209222)			Immediately	$ 83.86
4	8209209		Channel, Top		Appelez-nous	-
5	8209211		Frame, Curtain (left Side)		Appelez-nous	-
5	8209210		Frame, Curtain (right Side)		Appelez-nous	-
8	8209228		Front Assembly		Appelez-nous	-
9	8209216		Filter		Appelez-nous	-
10	8209276		Louver, Vertical		Appelez-nous	-
11	8209251		Louver, Horizontal		Appelez-nous	-
12	WP90767		Screw,   (Replaces: 8209219)			Immediately	$ 7.43
13	8209220		Curtain		Appelez-nous	-
16	8209217		Bag, Accessory		Appelez-nous	-
17	8209218		Bag, Accessory For Curtains		Appelez-nous	-
18	8209221		Screw		Appelez-nous	-
19	8209214		Bracket, Window Lock		Appelez-nous	-
20	WP489478		Screw   (Replaces: 8209208)				$ 7.36
21	4312641		Control, Remote		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
