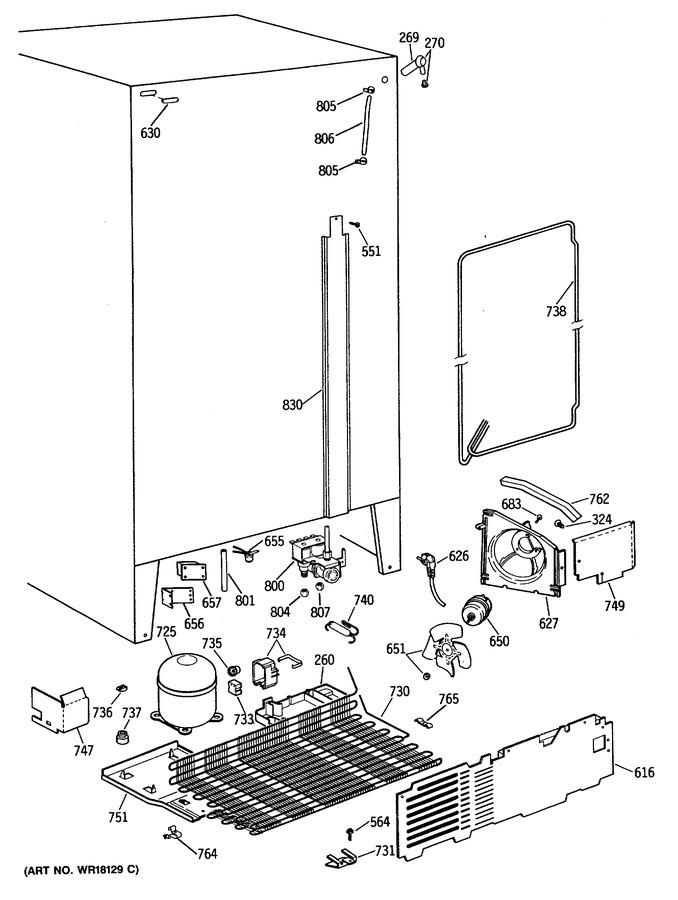

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Freezer Door
2 - Fresh Food Door
3 - Freezer Section
4 - Fresh Food Section
5 - Component Group
6 - Component Group
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 260 | WR32X1427 | Pan Water Disposal |
|
- | |||||
| 269 | WR2X8668 | Tube Water Fill |
|
- | |||||
| 270 | WR1X5223 | Clamp Hose |
|
- | |||||
| 270 | WR2X8474 | Grommet Water Fill |
|
- | |||||
| 324 | WR2X7069 | Plug Button |
|
- | |||||
| 551 | WZ04X0244 | Screw |
|
- | |||||
| 564 | WR1X1194 | Screw |
|
- | |||||
| 616 | WR82X342 | Cover Access Asm |
|
- | |||||
| 626 | WR1X5278 | Clamp Cable |
|
- | |||||
| 626 | WR1X1930 | Strain Relief |
|
- | |||||
| 626 | WR23X393 | Cord Power Asm |
|
- | |||||
| 627 | WR17X3415 | Housing Cond Fan |
|
- | |||||
| 630 | WR2X4097 | Plug Button Wh |
|
- | |||||
| 650 | WR60X200 | Motor Cond Fan |
|
- | |||||
| 651 | WR1X1714 | Washer |
|
- | |||||
| 651 | WR60X212 | Blade Cond Fan Asm |
|
- | |||||
| 651 | WR1X1515 | Nut Locking |
|
- | |||||
| 655 | WR50X123 | Thermostat Comp Htr |
|
- | |||||
| 656 | WR17X3419 | Brkt Transformer |
|
- | |||||
| 657 | WR62X75 | Transformer Asm |
|
- | |||||
| 683 | WR1X1825 | Screw |
|
- | |||||
| 725 | WR87X430 | High Side Asm |
|
- | |||||
| 730 | WR84X164 | Condenser Asm |
|
- | |||||
| 731 | WR2X8951 | Support Condenser |
|
- | |||||
| 731 | WR2X4850 | Clip Condenser |
|
- | |||||
| 733 | WR7X221 | Relay |
|
- | |||||
| 734 | WR2X7928 | Clip Relay Cover |
|
- | |||||
| 734 | WR2X7929 | Cover Relay |
|
- | |||||
| 735 | WR8X129 | Overload |
|
- | |||||
| 736 | WR2X8583 | Clip Compressor Mount |
|
- | |||||
| 737 | WR2X7238 | Grommet Comp Mtg |
|
- | |||||
| 738 | WR84X168 | Tube Cond Loop Asm |
|
- | |||||
| 738 | WR2X7064 | Clip Cond Loop |
|
- | |||||
| 740 | WR86X86 | Dryer |
|
- | |||||
| 747 | WR17X3123 | Baffle Paper Shield |
|
- | |||||
| 749 | WR17X3085 | Baffle Side Discharge |
|
- | |||||
| 751 | WR17X3101 | Plate Comp Mtg |
|
- | |||||
| 762 | WR2X7493 | Foam Strip Se Adh |
|
- | |||||
| 764 | WR2X8222 | Clip Cond Recip |
|
- | |||||
| 765 | WR2X8649 | Clip Cond |
|
- | |||||
| 800 | WR57X108 | Water Valve Asm |
|
- | |||||
| 801 | WR2X8935 | Sleeve Water Line |
|
- | |||||
| 804 | WR2X4046 | Insert |
|
- | |||||
| 804 | WG03A00093 | Nut & Sleeve (Replaces: WR57X57) |
|
$ 11.44 | |||||
| 805 | WR2X3736 | Clamp Tube |
|
- | |||||
| 806 | WR17X3475 | Water Line |
|
- | |||||
| 807 | WR2X4048 | Nut & Sleeve 5/16" |
|
- | |||||
| 830 | WR17X3087 | Cover Wiring Case Rr Wh |
|
- |
