SELECT A DIAGRAM

1 - Component Group


2 - Freezer Section


3 - Fresh Food Section


4 - Component Group


5 - Icemaker

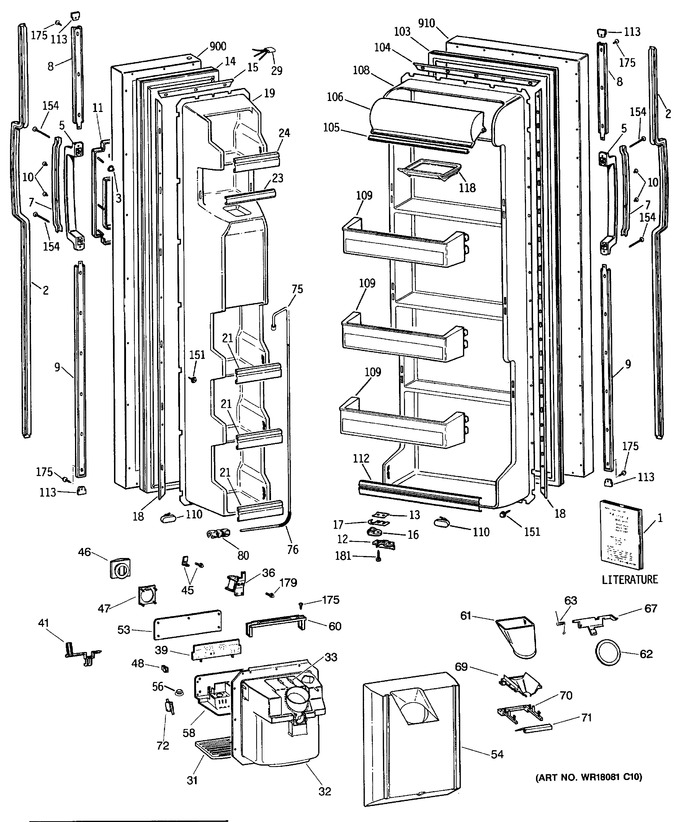

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-45101		Mini Manual Wiring		Appelez-nous	-
1	49-6793		Guide Owners		Appelez-nous	-
2	WR12X622		Insert Channel Handle		Appelez-nous	-
3	WR2X8669		Fastener Tubular		Appelez-nous	-
5	WR12X618		Handle Door		Appelez-nous	-
7	WR12X620		Stiffener Handle		Appelez-nous	-
8	WR12X872		Channel Handle		Appelez-nous	-
9	WR12X873		Channel Handle		Appelez-nous	-
10	WR1X1766		Screw		Appelez-nous	-
11	WR38X1954		Trim Asm Disp		Appelez-nous	-
12	WR2X4537		Stop Door		Appelez-nous	-
13	WR2X4599		Nutstrip		Appelez-nous	-
13	WG03L01596		Shim Cam & Door Stop   (Replaces: WR2X7490)				$ 12.40
14	WR24X527		Gasket Door		Appelez-nous	-
15	WR17X3119		Retainer Strip		Appelez-nous	-
16	WG03F00387		Hinge Cam Riser   (Replaces: WR2X4901)			Immediately	$ 10.01
17	WR2X9147		Shim Riser Cam		Appelez-nous	-
17	WR2X7491		Shim Riser Cam		Appelez-nous	-
18	WR17X1169		Retainer Strip		Appelez-nous	-
19	WR77X600		Door Inner Fz		Appelez-nous	-
21	WR17X3794		Front Door Shelf		Appelez-nous	-
23	WR17X3795		Front Door Shelf		Appelez-nous	-
24	WR17X3796		Front Door Shelf		Appelez-nous	-
29	WR49X377		Harness Dr Hinge Fz		Appelez-nous	-
31	WR17X3366		Grille Recess Bk				$ 11.50
32	WR17X3303		Recess Disp Bk		Appelez-nous	-
33	WR51X399		Heater Recess		Appelez-nous	-
36	WR62X77		Solenoid Asm		Appelez-nous	-
39	WR55X66		Module Time Delay		Appelez-nous	-
41	WR17X3493		Cradle Actuator		Appelez-nous	-
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
46	WG03A00194		Pad Actuator Bk   (Replaces: WR2X8702)				$ 15.72
47	WR2X8681		Support Actuator Pad Bk		Appelez-nous	-
48	WR2X8676		Knob Recess Disp Bk		Appelez-nous	-
53	WR17X3825		Nameplate Recess Asm		Appelez-nous	-
54	WR17X3133		Insulation Recess		Appelez-nous	-
56	WR2X8679		Plug Lampholder		Appelez-nous	-
58	WR17X3458		Shield Recess Disp Bk		Appelez-nous	-
60	WR2X8674		Cover Elect		Appelez-nous	-
61	WR17X3125		Chute Ice		Appelez-nous	-
62	WR01L01914		Door Recess Asm   (Replaces: WR17X3093)				$ 58.69
63	WR2X8663		Spring Recess Door		Appelez-nous	-
65	WZ04X0230		Screw		Appelez-nous	-
67	WR17X3089		Crank Door Recess		Appelez-nous	-
69	WR17X3095		Funnel Recess Shield Bk		Appelez-nous	-
70	WR2X8943		Supt. Funnel & Guard Bk		Appelez-nous	-
71	WR17X3478		Deflector Ice Bk		Appelez-nous	-
72	WG03L00633		Switch Cradle Actuator   (Replaces: WR23X366)				$ 58.69
75	WR17X3669		Grommet & Tube Asm		Appelez-nous	-
76	WR2X8933		Sleeve Water Line		Appelez-nous	-
80	WR2X4265		Clamp		Appelez-nous	-
80	WG03A00026		Nut & Union Asm   (Replaces: WR2X8545)				$ 15.72
87	WZ04X0241		Screw		Appelez-nous	-
98	WR1X1928		Screw & Washer Asm		Appelez-nous	-
98	WR1K1		Scr 8-36 T Ihw 3/8 S N		Appelez-nous	-
103	WR24X529		Gasket Door Ff Wh		Appelez-nous	-
104	WR17X1168		Retainer Strip		Appelez-nous	-
105	WR38X2041		Trim Dairy Door		Appelez-nous	-
106	WR22X478		Door Dairy		Appelez-nous	-
108	WR77X599		Door Inner Ff		Appelez-nous	-
109	WR71X2366		Module Asm		Appelez-nous	-
110	WR2X8989		Support Twist Bumper		Appelez-nous	-
112	WR17X3251		Front Door Shelf		Appelez-nous	-
113	WR2X7871		Cap Trim Handle		Appelez-nous	-
118	WR19X5003		Butter Dish		Appelez-nous	-
151	WR1X1554		Screw		Appelez-nous	-
153	WR1X1505		Screw		Appelez-nous	-
154	WR1X1765		Screw		Appelez-nous	-
154	WR1X1971		Screw		Appelez-nous	-
180	WR1X1966		Scr 6-22 Pl Ihw 3/8		Appelez-nous	-
181	WZ06X0105		Screw		Appelez-nous	-
234	WR23X394		Harness Def Htr Top		Appelez-nous	-
234	WR23X395		Harness Def Htr Btm		Appelez-nous	-
260	WR32X1427		Pan Water Disposal		Appelez-nous	-
265	WR2X4742		Axle Wheel		Appelez-nous	-
276	WR1X1510		Grommet Scr		Appelez-nous	-
303	WD1X1440		Housing Terminal		Appelez-nous	-
326	WR1X1990		Retainer Ring E		Appelez-nous	-
349	WG03L01240		Cup Drive Dispenser   (Replaces: WR2X4550)				$ 24.78
365	WG03F00990		Drive Auger Dispenser   (Replaces: WR2X4854)				$ 91.82
366	WR1X1547		Nut J		Appelez-nous	-
368	WR2X8459		Bracket Im Mtg		Appelez-nous	-
405	WR14X264		Tape Foam		Appelez-nous	-
423	WR2X6347		Support Shield Top		Appelez-nous	-
434	WR2X9175		Duct Air Return Asm Ff		Appelez-nous	-
435	WR2X9014		Socket & Term Asm		Appelez-nous	-
460	WR2X8911		Duct Air Rear		Appelez-nous	-
470	WR1X1929		Spacer Screw		Appelez-nous	-
471	WR2X8349		Grommet Scr Closed		Appelez-nous	-
480	WR72X209		Slide Asm Lh		Appelez-nous	-
494	WD1X1459		Insulator Hsng Term		Appelez-nous	-
560	WR1X1806		Screw		Appelez-nous	-
562	WX5X558		Scr 8-32 G Tr 5/8 S Ns		Appelez-nous	-
562	WB17X5054		Terminal		Appelez-nous	-
584	WZ02X0509		Scr 8-32 Ma Pa 3/16 S		Appelez-nous	-
636	WH2X765		Scr 8-32 M Hx 3/8 S		Appelez-nous	-
655	WR50X132		Thermostat Comp Htr		Appelez-nous	-
676	WZ04X0263		Screw		Appelez-nous	-
689	WR1X1598		Scr 8 32 Gx Hxw 1/2 S Dp		Appelez-nous	-
690	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
691	WX2X560		Scr 8-32 D Hxw 3/8 Ss		Appelez-nous	-
692	WZ04X0416		Screw		Appelez-nous	-
733	WR7X221		Relay		Appelez-nous	-
753	WB1K5052		Screw		Appelez-nous	-
758	WD2X323		Screw 8-32 X 3/8 Sph		Appelez-nous	-
782	WB17X5060		Terminal Blk Asm (2 Pin)		Appelez-nous	-
788	WB17X5079		Housing Socket Pkg 6 Pin		Appelez-nous	-
809	WR1X1936		Fastener Water Tube				$ 7.35
810	WR17X3227		Water Tank Disp Asm		Appelez-nous	-
811	WR2X8659		Plug Recessed		Appelez-nous	-
830	WR17X3732		Cover Wiring Case Rear		Appelez-nous	-
875	WG04A00781		Scr 8-18 Ab Hxw 3/8 S   (Replaces: WH2X930)			Immediately	$ 3.57
900	WR78X8495		Frz O. Door Ad		Appelez-nous	-
910	WR78X8494		Ff O. Door Ad		Appelez-nous	-
942	WD1X1395		Terminal Pin & Socket		Appelez-nous	-
1458	WB17X5062		Terminal Blk Asm (12pin)		Appelez-nous	-
1458	WB17X5061		Terminal Blk Asm (3 Pin)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
