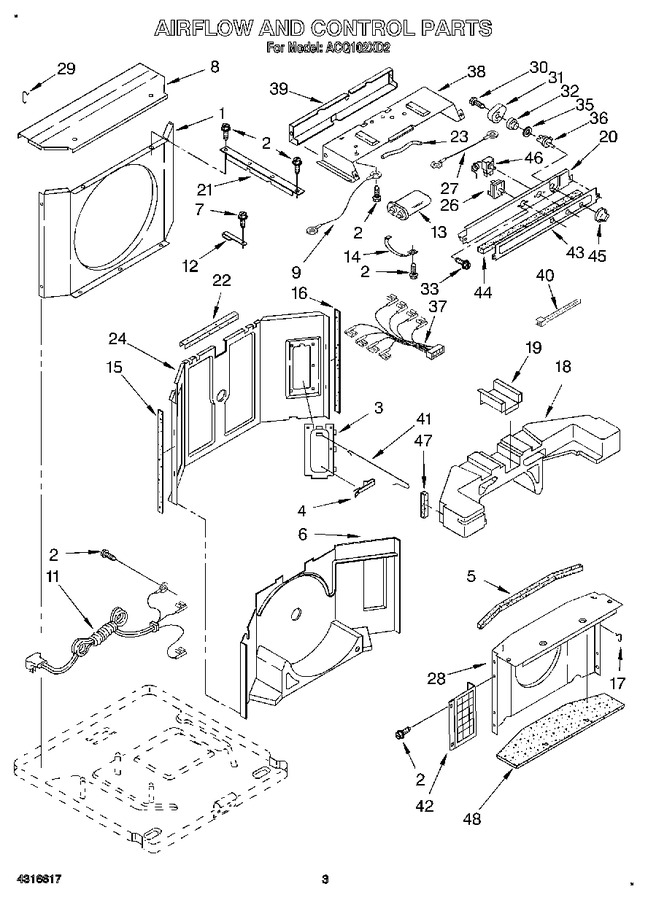

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1156928		Shroud, Condenser		Appelez-nous	-
2	WP489069		Screw, 8 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
3	1157193		Door, Exhaust		Appelez-nous	-
4	998178		Spring, Door		Appelez-nous	-
5	1160947		Seal		Appelez-nous	-
6	1158771		Scroll (lower)		Appelez-nous	-
7	1161561		Screw, 3/8 (2)		Appelez-nous	-
8	1156963		Top, Condenser		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
11	1167744		Cord, Appliance		Appelez-nous	-
12	1159002		Strap, Dividing Wall		Appelez-nous	-
13	1162592		Capacitor, Running		Appelez-nous	-
14	1167611		Bracket, Capacitor		Appelez-nous	-
15	1158514		Seal, Left Side		Appelez-nous	-
16	1158515		Seal, Right Side		Appelez-nous	-
17	994686		Clip, Shroud (2)		Appelez-nous	-
18	1158772		Scroll, Top		Appelez-nous	-
19	1156934		Raceway, Wiring		Appelez-nous	-
20	1156933		Panel, Control		Appelez-nous	-
21	1156939		Support, Unit (2)		Appelez-nous	-
22	1162200		Grommet, Divider Wall		Appelez-nous	-
23	475841		Insulator, Sleeve		Appelez-nous	-
24	1156926		Wall, Dividing		Appelez-nous	-
26	1158669		Switch, Rotary		Appelez-nous	-
27	1156982		Wire, Thermostat To Switch		Appelez-nous	-
28	1156929		Shroud Assembly, Evaporator		Appelez-nous	-
29	1164511		Clip, Shroud		Appelez-nous	-
30	489092		Screw, 7-18 X 5/8		Appelez-nous	-
31	997813		Cam, Exhaust		Appelez-nous	-
32	859233		Bushing, Shaft		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (2)		Appelez-nous	-
35	00647881		Washer   (Replaces: 647881)				$ 366.51
36	1158253		Shaft, Control Exhaust		Appelez-nous	-
37	1167524		Harness, Wiring - Control Box		Appelez-nous	-
38	1167612		Box, Control		Appelez-nous	-
39	1156965		Back Panel, Control Box		Appelez-nous	-
40	WPW10339879		Cable, Tie   (Replaces: 1159130)				$ 7.47
41	1157181		Wire, Exhaust Door		Appelez-nous	-
42	1158249		Impeller Guard (2)		Appelez-nous	-
43	1166499		Escutcheon		Appelez-nous	-
44	WP854334		Spacer (2)   (Replaces: 1158066)				$ 12.55
45	1158054		Knob, Controls (3)				$ 5.51
46	1157605		Control, Temperature		Appelez-nous	-
47	1158516		Seal, Housing		Appelez-nous	-
48	1157173		Insulation, Evaporator Shroud		Appelez-nous	-
