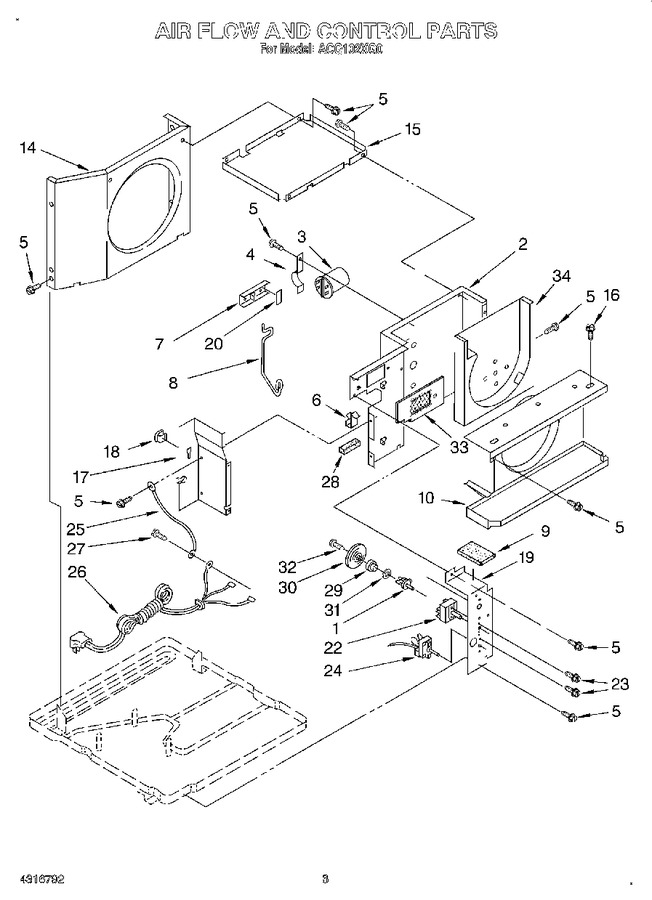

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	859232		Shaft, Control		Appelez-nous	-
2	1167154		Wall, Dividing		Appelez-nous	-
3	1162592		Capacitor, Running		Appelez-nous	-
4	1167611		Bracket, Running Capacitor		Appelez-nous	-
5	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
6	852451		Clamp, Cable		Appelez-nous	-
7	644206		Door, Exhaust		Appelez-nous	-
8	859235		Arm, Exhaust Door		Appelez-nous	-
9	1158576		Insulation, Top (control Panel)		Appelez-nous	-
10	856039		Shroud, Evaporator (includes No.11)		Appelez-nous	-
14	856037		Shroud, Condenser		Appelez-nous	-
15	1156536		Support, Unit		Appelez-nous	-
16	WP488729		Screw, S.m.no.8 X 1/2 (2)   (Replaces: 487910)			Immediately	$ 7.45
17	994561		Extension, Dividing Wall		Appelez-nous	-
18	644401		Clip, Retainer		Appelez-nous	-
19	996962		Panel, Control		Appelez-nous	-
20	1159175		Spacer		Appelez-nous	-
22	1172176		Switch, Rotary		Appelez-nous	-
23	488734		Screw, Machine 6-32 X .175 (4)		Appelez-nous	-
24	1166759		Control, Temperature		Appelez-nous	-
25	856094		Wire, Ground		Appelez-nous	-
26	1165241		Cable, Appliance		Appelez-nous	-
27	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
28	1166927		Seal		Appelez-nous	-
29	859233		Bushing, Cam		Appelez-nous	-
30	859234		Cam, Exhaust		Appelez-nous	-
31	00647881		Washer   (Replaces: 647881)				$ 366.51
32	489092		Screw		Appelez-nous	-
33	1162926		Screen, Insulation Assembly		Appelez-nous	-
34	1167166		Scroll, Air Housing		Appelez-nous	-
