SELECT A DIAGRAM

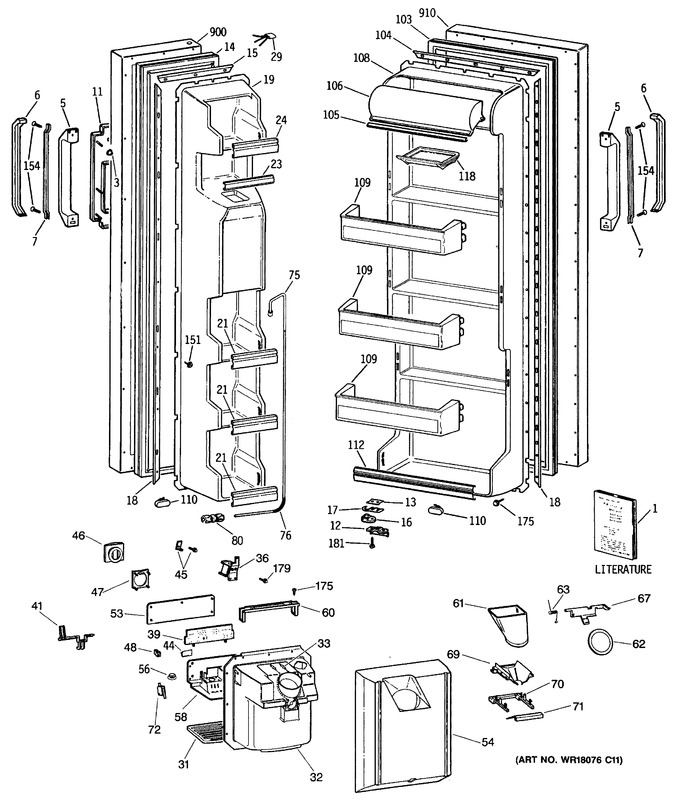

1 - Component Group
2 - Freezer Section
3 - Fresh Food Section
4 - Component Group
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 39-6296 | Guide Owners |
|
- | |||||
| 1 | SR2905 | Mini Manual Wiring |
|
- | |||||
| 3 | WR2X8669 | Fastener Tubular |
|
- | |||||
| 5 | WR12X923 | Handle Sxs |
|
- | |||||
| 6 | WR12X956 | Insert Handle Bk |
|
- | |||||
| 7 | WR12X957 | Stiffener Handle Sxs |
|
- | |||||
| 10 | WR1X1766 | Screw |
|
- | |||||
| 11 | WR38X1954 | Trim Asm Disp |
|
- | |||||
| 12 | WR2X4537 | Stop Door |
|
- | |||||
| 13 | WG03L01596 | Shim Cam & Door Stop (Replaces: WR2X7490) |
|
$ 12.40 | |||||
| 13 | WR2X4599 | Nutstrip |
|
- | |||||
| 14 | WR24X527 | Gasket Door |
|
- | |||||
| 15 | WR17X3119 | Retainer Strip |
|
- | |||||
| 16 | WG03F00387 | Hinge Cam Riser (Replaces: WR2X4901) |
|
Immediately | $ 10.01 | ||||
| 17 | WR2X7491 | Shim Riser Cam |
|
- | |||||
| 17 | WR2X9147 | Shim Riser Cam |
|
- | |||||
| 18 | WR17X1169 | Retainer Strip |
|
- | |||||
| 19 | WR77X600 | Door Inner Fz |
|
- | |||||
| 21 | WR17X3235 | Front Door Shelf |
|
- | |||||
| 23 | WR17X3246 | Front Door Shelf |
|
- | |||||
| 24 | WR17X3247 | Front Door Shelf |
|
- | |||||
| 29 | WR49X350 | Harness Dr Hinge Fz |
|
- | |||||
| 31 | WR17X3366 | Grille Recess Bk |
|
$ 11.50 | |||||
| 32 | WR17X3303 | Recess Disp Bk |
|
- | |||||
| 33 | WR51X353 | Heater Recess |
|
- | |||||
| 36 | WR62X78 | Solenoid Asm |
|
- | |||||
| 39 | WR55X72 | Module Time Delay |
|
- | |||||
| 41 | WR17X3493 | Cradle Actuator |
|
- | |||||
| 42 | WR2X3139 | Plug Button |
|
- | |||||
| 44 | WR2X8680 | Stop Selector Sw Bk |
|
- | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 46 | WG03A00194 | Pad Actuator Bk (Replaces: WR2X8702) |
|
$ 15.72 | |||||
| 47 | WR2X8681 | Support Actuator Pad Bk |
|
- | |||||
| 48 | WR2X8676 | Knob Recess Disp Bk |
|
- | |||||
| 53 | WR17X3292 | Nameplate Recess Asm |
|
- | |||||
| 54 | WR17X3133 | Insulation Recess |
|
- | |||||
| 56 | WR2X8679 | Plug Lampholder |
|
- | |||||
| 58 | WR17X3139 | Shield Recess Disp Bk |
|
- | |||||
| 60 | WR2X8674 | Cover Elect |
|
- | |||||
| 61 | WR17X3125 | Chute Ice |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X3093) |
|
$ 58.69 | |||||
| 63 | WR2X8663 | Spring Recess Door |
|
- | |||||
| 65 | WZ04X0230 | Screw |
|
- | |||||
| 67 | WR17X3089 | Crank Door Recess |
|
- | |||||
| 69 | WR17X3095 | Funnel Recess Shield Bk |
|
- | |||||
| 70 | WR2X8943 | Supt. Funnel & Guard Bk |
|
- | |||||
| 71 | WR17X3478 | Deflector Ice Bk |
|
- | |||||
| 72 | WG03L00633 | Switch Cradle Actuator (Replaces: WR23X366) |
|
$ 58.69 | |||||
| 75 | WR17X3614 | Grommet & Tube Asm |
|
- | |||||
| 76 | WR2X8933 | Sleeve Water Line |
|
- | |||||
| 80 | WG03A00026 | Nut & Union Asm (Replaces: WR2X8545) |
|
$ 15.72 | |||||
| 80 | WR2X4265 | Clamp |
|
- | |||||
| 86 | WH2X940 | Scr 8-32 Tt Fl 1/2 S |
|
- | |||||
| 87 | WZ04X0241 | Screw |
|
- | |||||
| 103 | WR24X529 | Gasket Door Ff |
|
- | |||||
| 104 | WR17X1168 | Retainer Strip |
|
- | |||||
| 105 | WR38X1956 | Trim Dairy Door |
|
- | |||||
| 106 | WR22X493 | Door Dairy |
|
- | |||||
| 108 | WR77X599 | Door Inner Ff |
|
- | |||||
| 109 | WR71X2366 | Module Asm |
|
- | |||||
| 110 | WR2X8989 | Support Twist Bumper |
|
- | |||||
| 112 | WR17X3251 | Front Door Shelf |
|
- | |||||
| 118 | WR19X5003 | Butter Dish |
|
- | |||||
| 151 | WR1X1554 | Screw |
|
- | |||||
| 153 | WR1X1505 | Screw |
|
- | |||||
| 154 | WR1X1765 | Screw |
|
- | |||||
| 154 | WR1X1859 | Scr 10-18 Hi/lo Pt 1 1/8 |
|
- | |||||
| 180 | WR1X1966 | Scr 6-22 Pl Ihw 3/8 |
|
- | |||||
| 181 | WZ06X0105 | Screw |
|
- | |||||
| 276 | WR1X1510 | Grommet Scr |
|
- | |||||
| 303 | WD1X1440 | Housing Terminal |
|
- | |||||
| 338 | WR2X4140 | Blade Rest Disp |
|
- | |||||
| 461 | WZ06X0136 | Scr 8-18 Ab Hxw 1/2 S |
|
- | |||||
| 471 | WR2X8349 | Grommet Scr Closed |
|
- | |||||
| 494 | WD1X1459 | Insulator Hsng Term |
|
- | |||||
| 584 | WZ02X0509 | Scr 8-32 Ma Pa 3/16 S |
|
- | |||||
| 636 | WH2X765 | Scr 8-32 M Hx 3/8 S |
|
- | |||||
| 676 | WZ04X0263 | Screw |
|
- | |||||
| 689 | WR1X1598 | Scr 8 32 Gx Hxw 1/2 S Dp |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WX2X560 | Scr 8-32 D Hxw 3/8 Ss |
|
- | |||||
| 692 | WZ04X0416 | Screw |
|
- | |||||
| 753 | WB1K5052 | Screw |
|
- | |||||
| 788 | WB17X5079 | Housing Socket Pkg 6 Pin |
|
- | |||||
| 809 | WR1X1936 | Fastener Water Tube |
|
$ 7.35 | |||||
| 875 | WG04A00781 | Scr 8-18 Ab Hxw 3/8 S (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 900 | WR78X8560 | Fz O. Door Ad |
|
- | |||||
| 910 | WR78X8559 | Ff O. Door Ad |
|
- | |||||
| 1458 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- | |||||
| 1458 | WB17X5061 | Terminal Blk Asm (3 Pin) |
|
- |
