SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelves


5 - Compartment Separator Parts


6 - Unit Parts

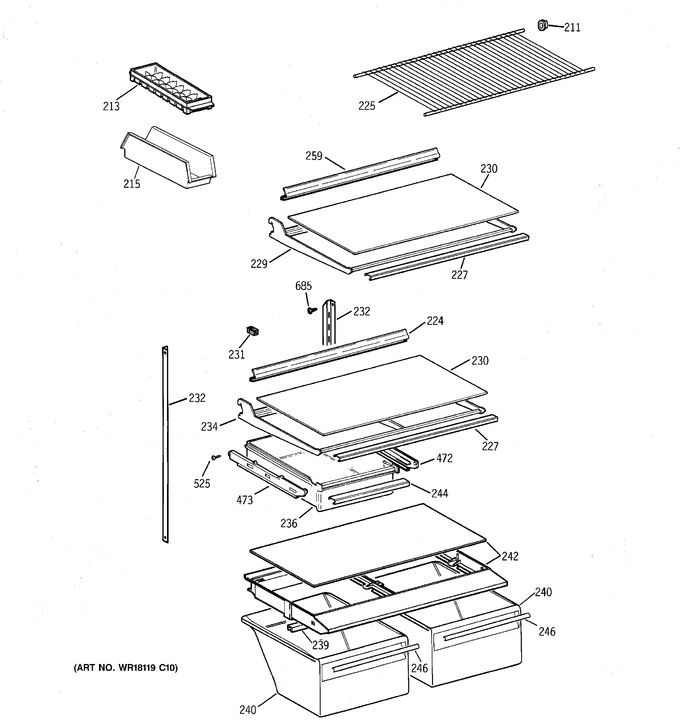

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
211	WR01A00967		Support Shelf   (Replaces: WR2X7973)				$ 4.20
213	WR30X311		Tray Ice		Appelez-nous	-
215	WR32X1560		Bucket Utility Wh		Appelez-nous	-
224	WR38X1704		Rear Trim Glass Shelf		Appelez-nous	-
225	WR71X7644		Shelf Asm Fz Wire		Appelez-nous	-
227	WR38X10099		Trim Glass Shelf		Appelez-nous	-
229	WR71X2179		Shelf Cant Full		Appelez-nous	-
230	WR32X1507		Shelf Cant Glass Full		Appelez-nous	-
232	WR72X96		Track Shelf Ff R/l		Appelez-nous	-
234	WR71X2191		Shelf Cant Snack Full		Appelez-nous	-
236	WR32X1073		Pan Meat (4")		Appelez-nous	-
239	WR17X2282		Support Rail Vp Cover		Appelez-nous	-
240	WR32X1326		Pan Twin Veg		Appelez-nous	-
242	WR32X1508		Shelf Glass Vp Cvr		Appelez-nous	-
244	WR38X10092		Handle Pan Meat		Appelez-nous	-
246	WR38X10097		Handle Veg Pan		Appelez-nous	-
259	WR38X1636		Rear Trim Glass Shelf		Appelez-nous	-
472	WR72X273		Slide Meat Pan Rh Wh		Appelez-nous	-
473	WR72X274		Slide Meat Pan Lh Wh		Appelez-nous	-
525	WR1X1763		Scr 8-18 T Wafer 5/8		Appelez-nous	-
685	WR1X1804		Scr 8-18 Ab Hxw 3/4 Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
