SELECT A DIAGRAM

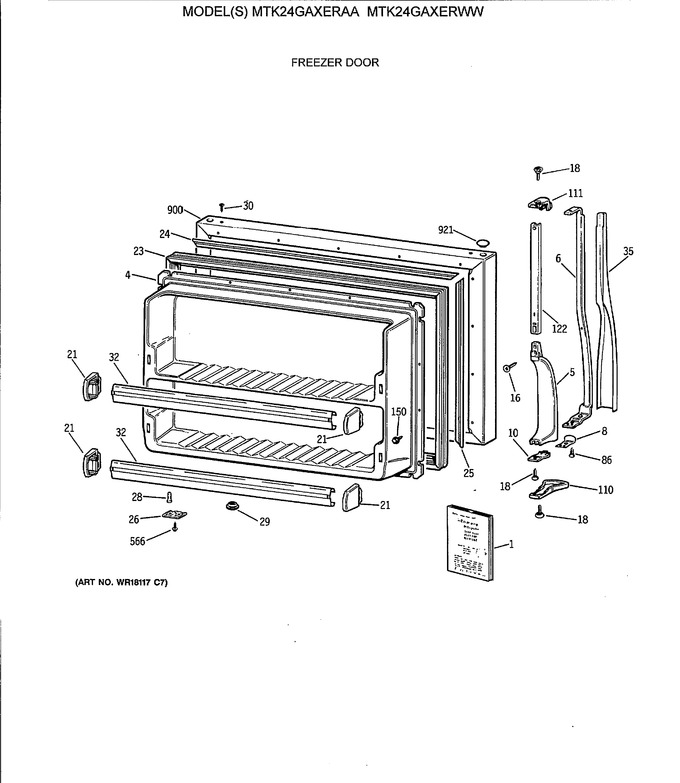

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet Parts


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-6842		Pm Guide Owner		Appelez-nous	-
1	31-45348		Pm Mini Manual Wiring		Appelez-nous	-
4	WR77X608		Door Inner Fz		Appelez-nous	-
5	WR12X463		Handle Door		Appelez-nous	-
6	WR12X613		Stiffener Handle		Appelez-nous	-
8	WR2X7793		Shim Handle Asm		Appelez-nous	-
10	WR2X7140		Clip Handle		Appelez-nous	-
16	WR1X1565		Scr 8-32 Ma Fl 21/32 S		Appelez-nous	-
18	WR1X1726		Scr 10-16 Abx3/4 Ss		Appelez-nous	-
21	WR2X7975		Cap Shelf Front		Appelez-nous	-
23	WR24X438		Gasket Door Fz Wh		Appelez-nous	-
24	WR17X2136		Retainer Strip H		Appelez-nous	-
25	WR17X2135		Retainer Strip V		Appelez-nous	-
26	WR2X9009		Stop Door		Appelez-nous	-
28	WR2X7627		Thimble Door Plastic		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
30	WR1X5475		Screw		Appelez-nous	-
32	WR71X2621		Front Shelf Fz Full		Appelez-nous	-
35	WR12X1021		Insert/np Hndl Fz Wh		Appelez-nous	-
86	WH2X940		Scr 8-32 Tt Fl 1/2 S		Appelez-nous	-
110	WR2X7791		Cap Trim Handle		Appelez-nous	-
111	WR2X7792		Cap Trim Handle		Appelez-nous	-
122	WR12X608		Channel Handle		Appelez-nous	-
150	WR1X1791		Screw		Appelez-nous	-
197	WR2X9013		Shield Light Ff		Appelez-nous	-
494	WD1X1459		Insulator Hsng Term		Appelez-nous	-
562	WB17X5054		Terminal		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
636	WH2X765		Scr 8-32 M Hx 3/8 S		Appelez-nous	-
680	WR1X1850		Screw 7-19 X 1/2 Hxw		Appelez-nous	-
900	WR78X8753		Door Asm Fz Wh		Appelez-nous	-
921	WR2X7624		Plug Button Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
