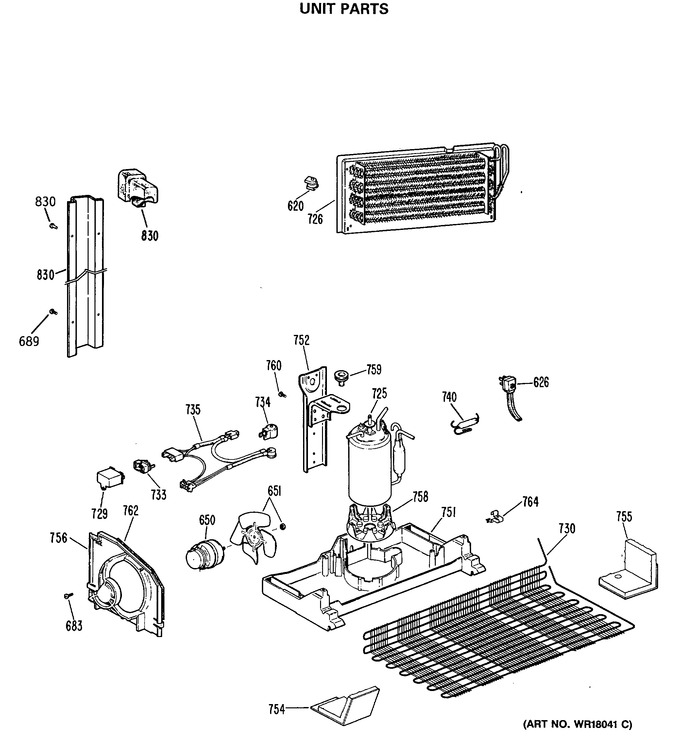

6 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 620 | WR50X119 | Thermostat Def |
|
- | |||||
| 626 | WR1X5278 | Clamp Cable |
|
- | |||||
| 626 | WR23X108 | Power Cord Asm |
|
- | |||||
| 650 | SM5211 | Motor Cond Fan (Replaces: WR60X187) |
|
Immediately | $ 70.30 | ||||
| 651 | WR60X212 | Blade Cond Fan Asm |
|
- | |||||
| 651 | WR1X1714 | Washer |
|
- | |||||
| 651 | WR1X1715 | Nut |
|
- | |||||
| 683 | WR1X1825 | Screw |
|
- | |||||
| 689 | WZ05X0246 | Screw |
|
- | |||||
| 725 | WR87X432 | Hi Side Asm |
|
- | |||||
| 726 | WR85X284 | Low Side Asm |
|
- | |||||
| 729 | WR62X46 | Capacitor |
|
- | |||||
| 730 | WR84X171 | Condenser Asm |
|
- | |||||
| 733 | WR7X203 | Relay |
|
- | |||||
| 734 | WR2X7396 | Cover-guardette |
|
- | |||||
| 735 | WR8X126 | Guardette & Lead Asm |
|
- | |||||
| 740 | WR86X86 | Dryer |
|
- | |||||
| 751 | WR17X2088 | Unimount High Side |
|
- | |||||
| 754 | WR17X2523 | Baffle Asm Lh |
|
- | |||||
| 755 | WR17X2268 | Baffle Asm Rh |
|
- | |||||
| 756 | WR17X3005 | Housing Cond Fan Asm |
|
- | |||||
| 758 | WR17X2091 | Pad-comp. |
|
- | |||||
| 762 | WR14X313 | Foam Strip |
|
- | |||||
| 764 | WR2X7667 | Clip Cond |
|
- | |||||
| 830 | WR17X3056 | Cover Suct Line |
|
- | |||||
| 830 | WR1X1841 | Pop Rivet |
|
- | |||||
| 830 | WR82X318 | Foam Plug S L |
|
- |
