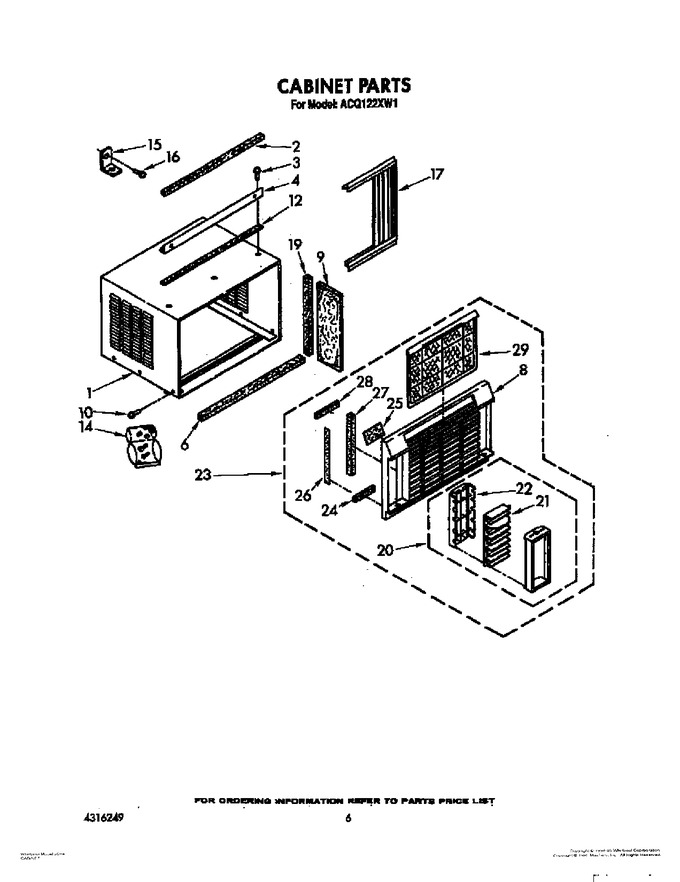

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1156954		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
4	1157196		Chanel, Top		Appelez-nous	-
6	1159289		Seal		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1159253		Insulation (2)		Appelez-nous	-
10	488730		Screw, 8 X 7/16 (6)		Appelez-nous	-
12	1158593		Seal, Cabinet Top		Appelez-nous	-
14	1157654		Accessory, Bag		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	1157666		Curtain (right Side)		Appelez-nous	-
17	1157665		Curtain (left Side)		Appelez-nous	-
19	1159254		Seal, Strip (2)		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1156974		Horzontal Louver		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1156970		Front, Complete		Appelez-nous	-
24	1159080		Seal (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
27	1157624		Seal (2)		Appelez-nous	-
28	WP854334		Seal (2)   (Replaces: 1158270)				$ 12.55
29	1156976		Filter		Appelez-nous	-
