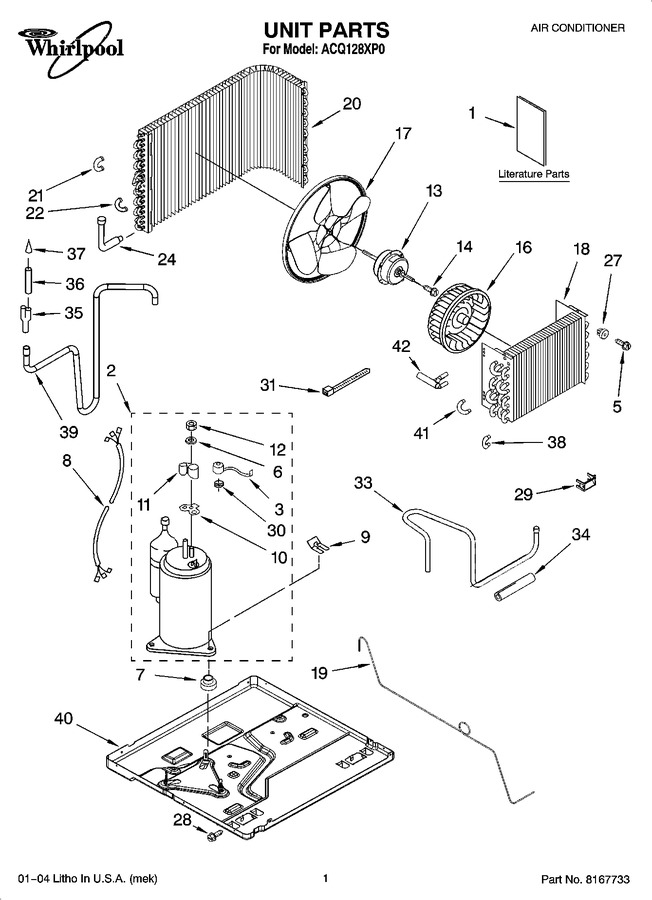

01 - Unit Parts
02 - Air Flow And Control Parts
03 - Cabinet Parts
04 - Installation Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1185264 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT1187361 | Literature Parts (use & Care Guide) |
|
- | |||||
| 1 | LIT1187507 | Energy Guide |
|
- | |||||
| 2 | 1187503 | Compressor |
|
- | |||||
| 3 | WP1188381 | Overload (Replaces: 1186675) |
|
$ 75.21 | |||||
| 5 | WP489463 | Screw (Replaces: 8533969) |
|
$ 7.43 | |||||
| 6 | 1185794 | Gasket |
|
- | |||||
| 7 | WP950021 | Grommet (Replaces: 950021) |
|
$ 78.99 | |||||
| 8 | 1187606 | Wiring Harness, Compressor |
|
- | |||||
| 9 | 8011446 | Clip, Compressor |
|
- | |||||
| 10 | 1185793 | Gasket, Terminal Cover |
|
- | |||||
| 11 | 1185792 | Cover, Terminal |
|
- | |||||
| 12 | W10833054 | Nut, Hex (Replaces: 1186030) |
|
- | |||||
| 13 | 1187471 | Motor, Fan |
|
- | |||||
| 14 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 | ||||
| 16 | 1187494 | Wheel, Blower |
|
- | |||||
| 17 | 1187178 | Blade, Fan |
|
- | |||||
| 18 | 1187501 | Evaporator |
|
- | |||||
| 19 | 1187648 | Tube, Restrictor |
|
- | |||||
| 20 | 1187439 | Condenser |
|
- | |||||
| 21 | 1187604 | Bend, Return |
|
- | |||||
| 22 | 8031222 | Bend, Return |
|
- | |||||
| 24 | 1187660 | Tube, Connecting |
|
- | |||||
| 27 | 1187495 | Grommet, Screw |
|
- | |||||
| 28 | 488624 | Screw |
|
- | |||||
| 29 | 1185337 | Clip, Temperature Anticipator |
|
- | |||||
| 30 | 1185795 | Spring, Overload |
|
- | |||||
| 31 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 33 | 1187729 | Tube, Suction (includes Item 34) |
|
- | |||||
| 34 | 1187637 | Seal, Suction Tube |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 36 | 951437 | Tube, Outlet (includes Item 37) |
|
- | |||||
| 37 | 49599 | Strainer |
|
- | |||||
| 38 | 855199 | Bend, Returm |
|
- | |||||
| 39 | 1187504 | Tube, Discharge |
|
- | |||||
| 40 | 1187184 | Base |
|
- | |||||
| 41 | 855644 | Bend, Return |
|
- | |||||
| 42 | 1187524 | Manifold, Suction |
|
- |
