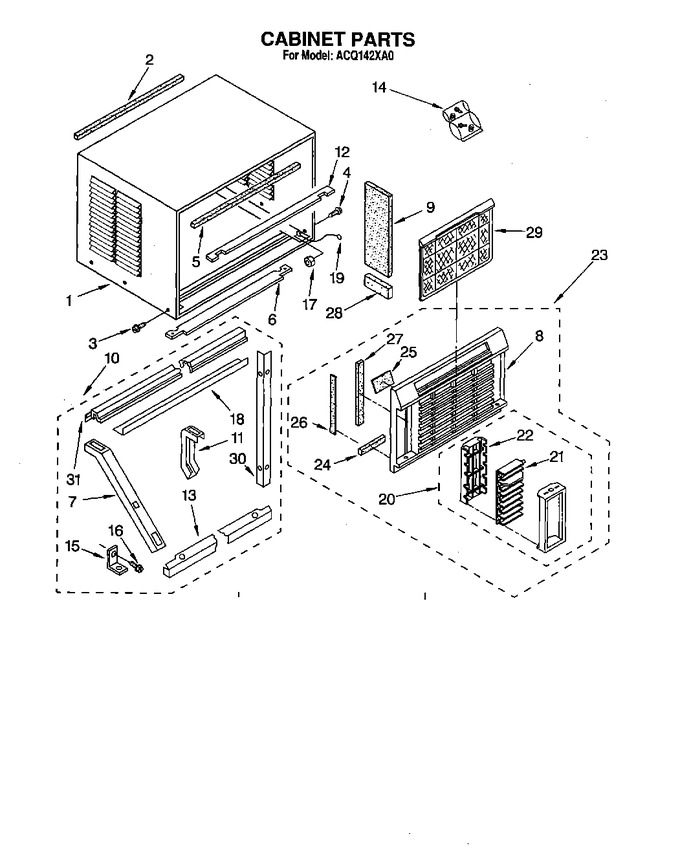

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1162272		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
4	WP488234		Screw   (Replaces: 488234)				$ 6.37
5	1158731		Seal, Top		Appelez-nous	-
6	1160768		Seal		Appelez-nous	-
7	649945		Support Cabinet		Appelez-nous	-
8	1157463		Cabinet Front		Appelez-nous	-
9	1160819		Insulation, Cabinet Side (2)		Appelez-nous	-
10	1160600		Kit, Window Mounting		Appelez-nous	-
11	649946		Retainer, Cabinet Support		Appelez-nous	-
12	1160762		Seal		Appelez-nous	-
13	649947		Bracket, Support		Appelez-nous	-
14	1158746		Bag, Accessory		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
17	WP486255		Nut, Hex   (Replaces: 486529)				$ 5.82
18	644271		Angle, Top Mtg.		Appelez-nous	-
19	857022		Ground, Cabinet		Appelez-nous	-
20	1157464		Cartridge, Complete		Appelez-nous	-
21	1157466		Horzontal Louver		Appelez-nous	-
22	1157467		Ribs, Vertical		Appelez-nous	-
23	1157462		Front, Complete		Appelez-nous	-
24	1160764		Seal (right Side)		Appelez-nous	-
24	1160763		Seal (left Side)		Appelez-nous	-
25	1161864		Seal (left Side)		Appelez-nous	-
25	1160770		Seal (right Side)		Appelez-nous	-
26	1160769		Seal		Appelez-nous	-
27	WP854334		Seal   (Replaces: 1161863)				$ 12.55
28	1160818		Insulation, Cabinet Side (2)		Appelez-nous	-
29	1157468		Filter		Appelez-nous	-
30	644272		Angle, Side Mtg.		Appelez-nous	-
31	644288		Gasket, Sash		Appelez-nous	-
