SELECT A DIAGRAM

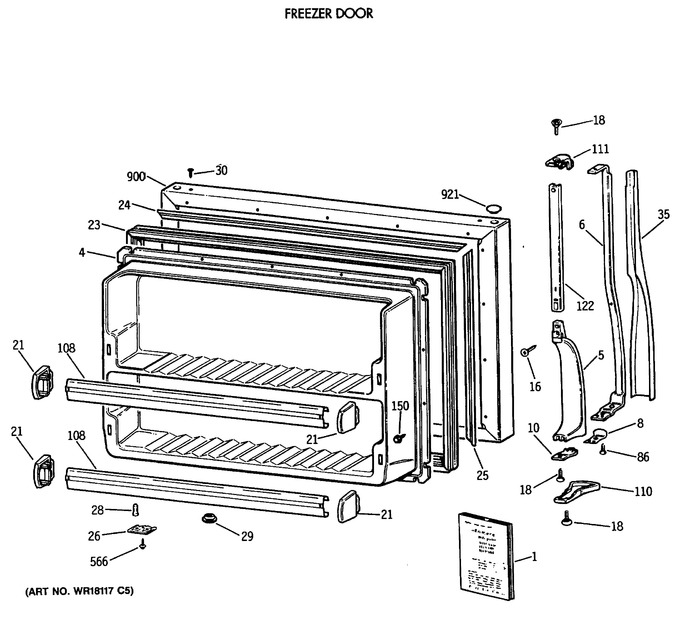

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet Parts


4 - Shelf Parts


5 - Compartment Separator Parts


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	79-6033		Pm Guide Owners		Appelez-nous	-
1	SR2925		Technical Data Sheet		Appelez-nous	-
1	31-5025		Attention Installer		Appelez-nous	-
4	WR77X608		Door Inner Fz		Appelez-nous	-
5	WR12X463		Handle Door		Appelez-nous	-
6	WR12X613		Stiffener Handle		Appelez-nous	-
8	WR2X7793		Shim Handle Asm		Appelez-nous	-
10	WR2X7140		Clip Handle		Appelez-nous	-
16	WR1X1565		Scr 8-32 Ma Fl 21/32 S		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab Fwr 3/4		Appelez-nous	-
21	WR2X7975		Cap Shelf Frt		Appelez-nous	-
23	WR24X438		Gasket Door Fz Wh		Appelez-nous	-
24	WR17X2136		Retainer Strip H		Appelez-nous	-
25	WR17X2135		Retainer Strip V		Appelez-nous	-
26	WR2X7628		Door Stop		Appelez-nous	-
28	WR2X7627		Thimble Door Plastic		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
30	WR1X5475		Screw		Appelez-nous	-
35	WR12X5214		Insert & Nameplate		Appelez-nous	-
86	WH2X940		Scr 8-32 Tt Fl 1/2 S		Appelez-nous	-
108	WR71X2471		Front Door Shelf		Appelez-nous	-
110	WR2X7791		Cap Trim Handle		Appelez-nous	-
111	WR2X7792		Cap Trim Handle		Appelez-nous	-
122	WR12X608		Channel Handle		Appelez-nous	-
150	WR1X1791		Screw		Appelez-nous	-
494	WD1X1459		Insulator Hsng Term		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
680	WR1X1850		Screw		Appelez-nous	-
690	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
788	WB17X5064		Housing Socket Pkg 4 P1n		Appelez-nous	-
788	WB17X5079		Housing Socket Pkg 6 Pin		Appelez-nous	-
900	WR78X7910		Frz O.door Wh		Appelez-nous	-
921	WR2X7624		Plug Button Wh		Appelez-nous	-
