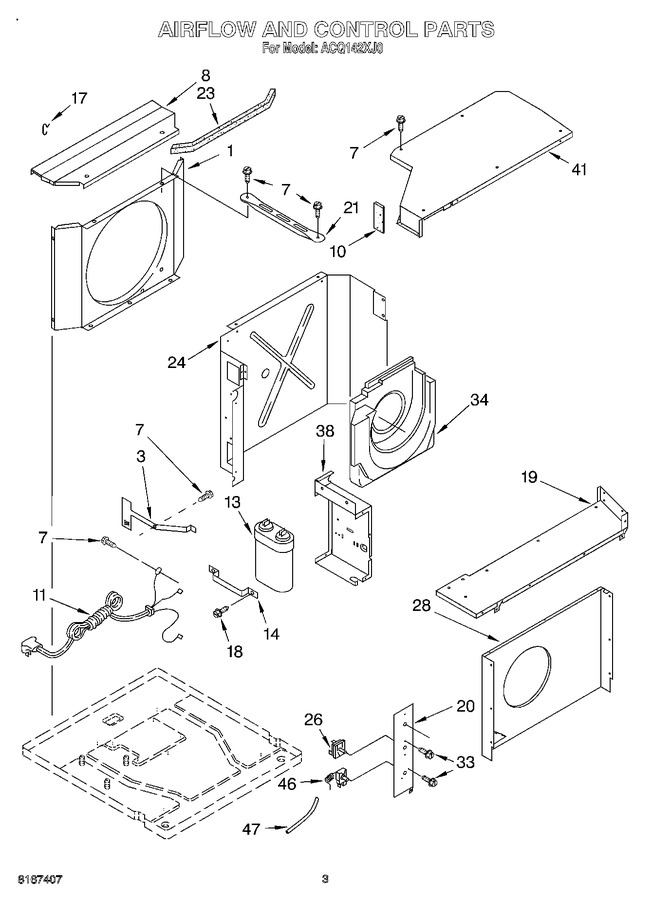

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157403		Shroud, Condenser		Appelez-nous	-
3	1183344		Door, Air		Appelez-nous	-
7	WP489069		Screw, No.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
8	1157407		Top, Condenser		Appelez-nous	-
10	1162616		Seal, Anti-rub		Appelez-nous	-
11	1167644		Cable, Appliance		Appelez-nous	-
13	1162606		Capacitor		Appelez-nous	-
14	1167611		Bracket, Capacitor		Appelez-nous	-
17	1164511		Clip, Shroud (2)		Appelez-nous	-
18	WP489069		Screw, 8-18 X .375   (Replaces: 1157158)			Immediately	$ 7.56
19	1183528		Top, Evaporator Shroud		Appelez-nous	-
20	1182954		Panel, Control		Appelez-nous	-
21	1166169		Support, Unit (2)		Appelez-nous	-
23	1158732		Seal, Shroud		Appelez-nous	-
24	1165593		Dividing Wall		Appelez-nous	-
26	1182964		Switch, Rotary		Appelez-nous	-
28	1160666		Shroud Assembly, Evaporator		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (2)		Appelez-nous	-
34	1160657		Housing, Air		Appelez-nous	-
38	1182937		Control Box (r.s.)		Appelez-nous	-
41	1183529		Cover, Top		Appelez-nous	-
46	1183372		Control, Temperature		Appelez-nous	-
47	8011238		Sleeve, Insulating		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
