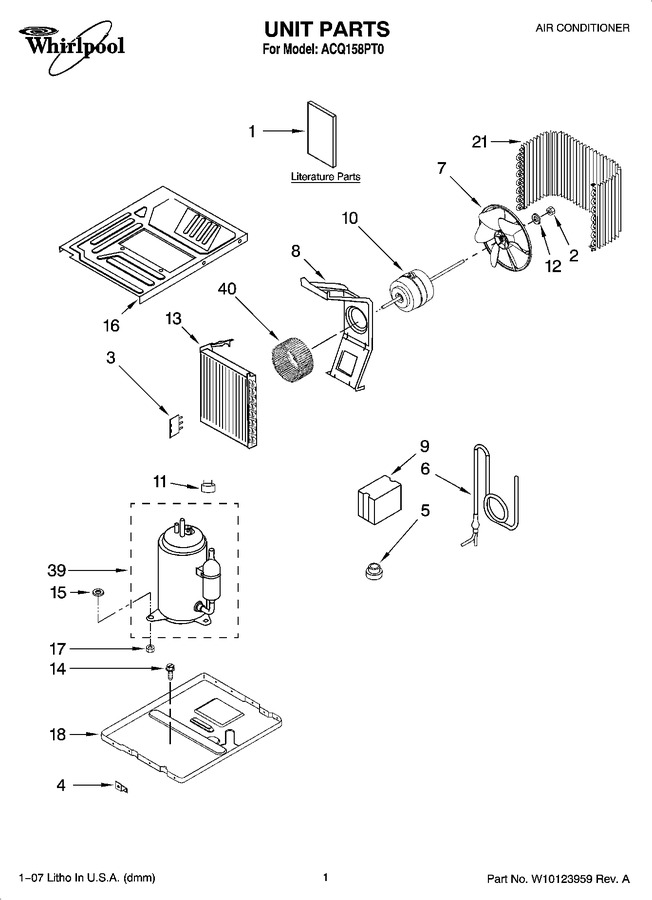

01 - Unit Parts
02 - Air Flow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8215279 | Use & Care Guide |
|
- | |||||
| 1 | W10122486 | Energy Guide |
|
- | |||||
| 1 | 8215241 | Wiring Diagram |
|
- | |||||
| 2 | 8215290 | Nut W/washer |
|
- | |||||
| 3 | 8209771 | Support, Tube Sensor |
|
- | |||||
| 4 | 8215148 | Clip |
|
- | |||||
| 5 | 8215149 | Drain Plug |
|
- | |||||
| 6 | 8215298 | Tube, Restrictor |
|
- | |||||
| 7 | 8215104 | Blade, Fan |
|
- | |||||
| 8 | 8215107 | Bracket, Fan Motor |
|
- | |||||
| 9 | 8215300 | Relay |
|
- | |||||
| 10 | 8215292 | Motor, Fan |
|
- | |||||
| 11 | 8215294 | Overload |
|
- | |||||
| 12 | 8215291 | Washer |
|
- | |||||
| 13 | 8215121 | Evaporator |
|
- | |||||
| 14 | W11245710 | Screw (5) (Replaces: 8209688) |
|
Immediately | $ 13.28 | ||||
| 15 | 8215296 | Gasket |
|
- | |||||
| 16 | 8215106 | Cover, Evaporator |
|
- | |||||
| 17 | 8215297 | Nut W/washer |
|
- | |||||
| 18 | 8215306 | Base |
|
- | |||||
| 21 | 8215289 | Condenser |
|
- | |||||
| 39 | 8215295 | Compressor Assy. |
|
- | |||||
| 40 | 8215118 | Wheel, Blower |
|
- |
