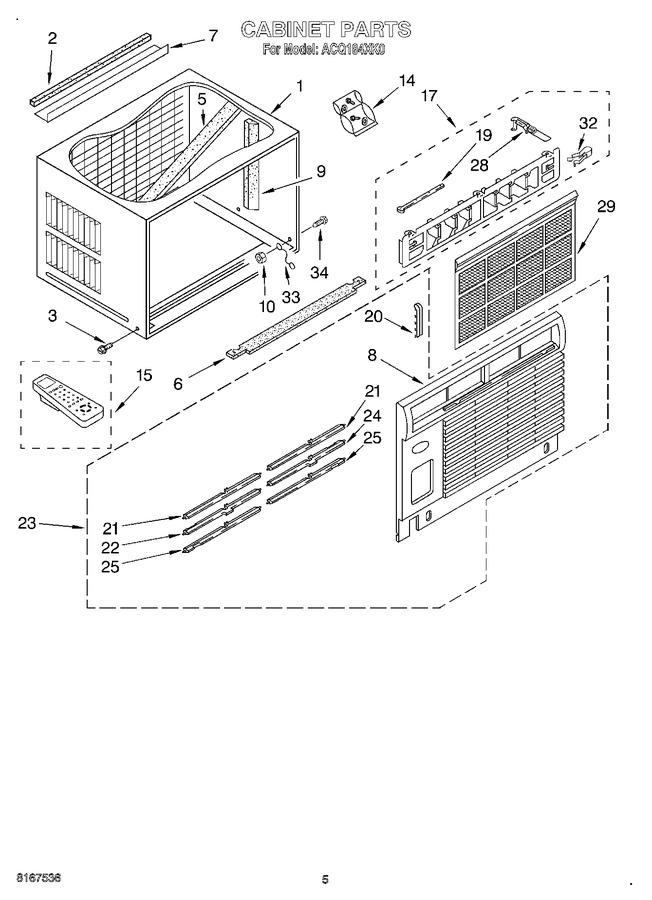

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1168478		Cabinet (includes Insulation)		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
5	1183415		Insulation, Top (cabinet)		Appelez-nous	-
6	1160768		Seal		Appelez-nous	-
7	1168490		Angle, Top Mounting		Appelez-nous	-
8	1184715		Frame, Front		Appelez-nous	-
9	1183414		Insulation, Cabinet Side (2)		Appelez-nous	-
10	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
14	1166387		Bag, Accessory		Appelez-nous	-
15	1184822		Control, Remote		Appelez-nous	-
17	1182351		Vertical, Louver		Appelez-nous	-
19	1182349		Link, Verticle Louver (2)		Appelez-nous	-
20	1166672		Link, Louver (horizontal)		Appelez-nous	-
21	1168509		Louver, Horizontal (8)		Appelez-nous	-
22	1168511		Louver, Horizontal W/ Handle, Left		Appelez-nous	-
23	1184714		Front, Complete		Appelez-nous	-
24	1168510		Louver, Horizontal W/ Handle, Right		Appelez-nous	-
25	1168513		Louver, Horizontal (notch Left)		Appelez-nous	-
25	1168512		Louver, Horizontal (notch Right)		Appelez-nous	-
28	1182348		Actuator, Louver (2)		Appelez-nous	-
29	1182336		Filter				$ 73.49
32	1167095		Spring, Detent (2)		Appelez-nous	-
33	857022		Wire, Ground		Appelez-nous	-
34	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.37
