SELECT A DIAGRAM

02 - Unit

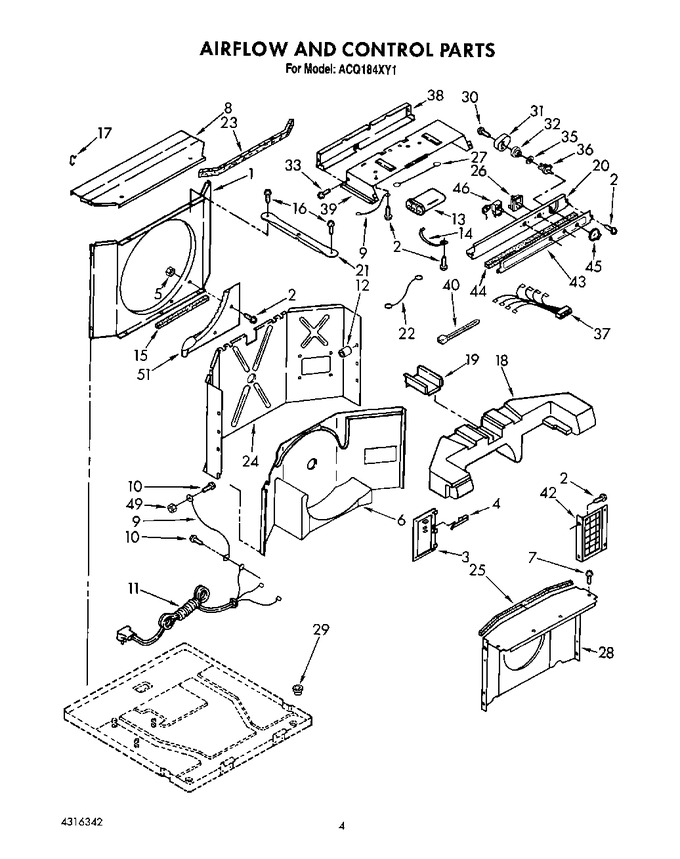

03 - Airflow And Control


04 - Cabinet


05 - Optional


06 - Installation, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157403		Shroud, Condenser		Appelez-nous	-
2	WP489069		Screw, 8 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
3	997221		Door, Exhaust		Appelez-nous	-
4	859369		Spring, Door		Appelez-nous	-
5	WP488130		Nut   (Replaces: 1160408)				$ 6.59
6	1158653		Scroll (lower)		Appelez-nous	-
7	WP489069		Screw, No.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
8	1157407		Top, Condenser		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
10	488853		Screw, 8 X 3/8		Appelez-nous	-
11	1158360		Cord, Appliance		Appelez-nous	-
12	1162200		Grommet, Divider Wall		Appelez-nous	-
13	1157631		Capacitor, Running		Appelez-nous	-
14	1156967		Bracket, Capacitor		Appelez-nous	-
15	1160792		Seal, Condenstate Cup		Appelez-nous	-
16	1161561		Screw 3/8		Appelez-nous	-
17	1158257		Clip, Shroud (2)		Appelez-nous	-
18	1158654		Scroll, Upper		Appelez-nous	-
19	1157418		Raceway, Wiring		Appelez-nous	-
20	1156933		Panel, Control		Appelez-nous	-
21	1157420		Support, Unit (2)		Appelez-nous	-
22	1157443		Wire, Control		Appelez-nous	-
23	1158732		Seal, Shroud		Appelez-nous	-
24	1161556		Dividing Wall		Appelez-nous	-
25	1160820		Seal, Evaporator		Appelez-nous	-
26	1158669		Switch, Rotary		Appelez-nous	-
27	1156982		Wire, Thermostat To Switch		Appelez-nous	-
28	1157404		Shroud Assembly, Evaporator		Appelez-nous	-
29	997285		Cup, Condensate		Appelez-nous	-
30	489092		Screw, 7-18 X 5/8		Appelez-nous	-
31	997813		Cam, Exhaust		Appelez-nous	-
32	859233		Bushing, Shaft		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (2)		Appelez-nous	-
35	00647881		Washer   (Replaces: 647881)				$ 366.51
36	1158253		Shaft, Control Exhaust		Appelez-nous	-
37	1157651		Harness, Wiring - Control Box		Appelez-nous	-
38	1156932		Control Box		Appelez-nous	-
39	1156965		Back Panel, Control Box		Appelez-nous	-
40	WPW10339879		Cable, Tie   (Replaces: 1159130)				$ 7.47
42	1161555		Impeller Guard		Appelez-nous	-
43	1158658		Escutcheon		Appelez-nous	-
44	WP854334		Spacer (2)   (Replaces: 1158066)				$ 12.55
45	1158054		Knob, Controls (3)				$ 5.51
46	1160214		Control, Temperature		Appelez-nous	-
49	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
51	1158387		Cup, Condensate		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
