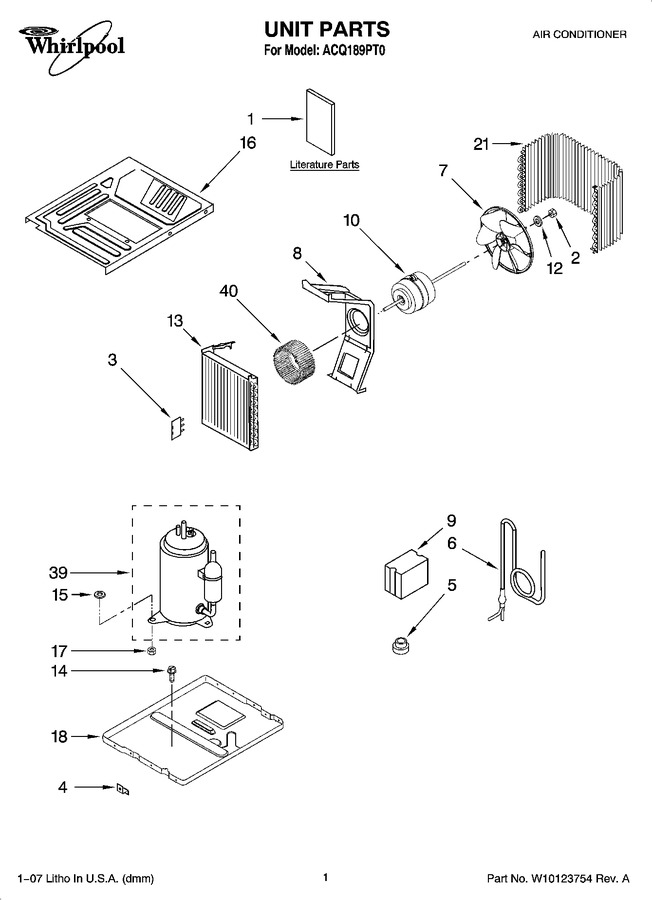

01 - Unit Parts
02 - Air Flow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8215242 | Wiring Diagram |
|
- | |||||
| 1 | 8215279 | Use & Care Guide |
|
- | |||||
| 1 | W10122488 | Energy Guide |
|
- | |||||
| 2 | 8215290 | Nut W/washer |
|
- | |||||
| 3 | 8209771 | Support, Tube Sensor |
|
- | |||||
| 4 | 8215148 | Clip |
|
- | |||||
| 5 | 8215149 | Drain Plug |
|
- | |||||
| 6 | 8215312 | Tube, Restrictor |
|
- | |||||
| 7 | 8215104 | Blade, Fan |
|
- | |||||
| 8 | 8215107 | Bracket, Fan Motor |
|
- | |||||
| 9 | 8215130 | Relay |
|
- | |||||
| 10 | 8215310 | Motor, Fan |
|
- | |||||
| 12 | 8215291 | Washer |
|
- | |||||
| 13 | 8215121 | Evaporator |
|
- | |||||
| 14 | W11245710 | Screw (5) (Replaces: 8209688) |
|
Immediately | $ 13.28 | ||||
| 15 | 8215296 | Gasket |
|
- | |||||
| 16 | 8215309 | Cover, Evaporator |
|
- | |||||
| 17 | 8215297 | Nut W/washer |
|
- | |||||
| 18 | 8215315 | Base |
|
- | |||||
| 21 | 8215308 | Condenser |
|
- | |||||
| 39 | 8215311 | Compressor Assy. |
|
- | |||||
| 40 | 8215152 | Wheel, Blower |
|
- |
