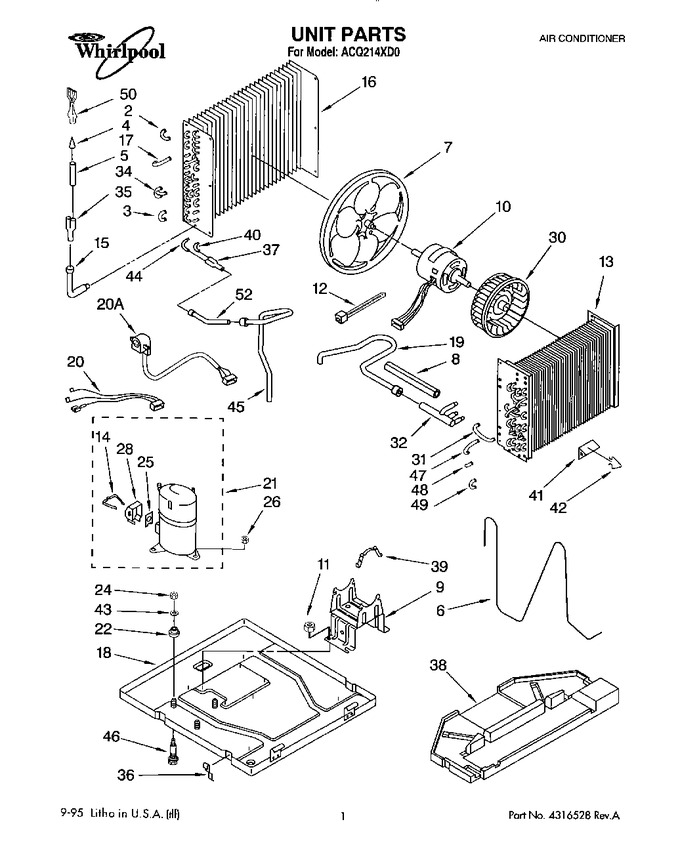

01 - Unit, Literature
02 - Airflow And Control
03 - Cabinet
04 - Optional
05 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 708532 | Bend, Return Condenser (15) |
|
- | |||||
| 3 | 708531 | Bend, Return Condenser (8) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 1163768 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1165809 | Tube, Restrictor (4) |
|
- | |||||
| 7 | 1158665 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1160870 | Seal, Suction Tube |
|
- | |||||
| 9 | 1160672 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1166225 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut (Replaces: 1160408) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 602851) |
|
$ 7.47 | |||||
| 13 | 1165785 | Evaporator |
|
- | |||||
| 14 | 1161083 | Retainer, Cover |
|
- | |||||
| 15 | 1158703 | Tube, Connecting |
|
- | |||||
| 16 | 1163522 | Condenser |
|
- | |||||
| 17 | 1156329 | Bend, Return (1) |
|
- | |||||
| 18 | 1163440 | Base (includes 46) |
|
- | |||||
| 19 | 1164088 | Tube, Suction |
|
- | |||||
| 20 | 1163453 | Harness, Wiring (compressor) |
|
- | |||||
| 21 | 1163970 | Compressor |
|
- | |||||
| 22 | 1165973 | Grommet (3) |
|
- | |||||
| 24 | 858121 | Locknut (1) |
|
- | |||||
| 25 | 1161082 | Gasket, Terminal Cover |
|
- | |||||
| 26 | 1160798 | Nut, Washer (2) |
|
- | |||||
| 28 | 1161076 | Cover, Terminal |
|
- | |||||
| 30 | 1158443 | Wheel, Blower (evaporator) |
|
- | |||||
| 31 | 998682 | Return Bend (2) |
|
- | |||||
| 32 | 1165781 | Manifold, Suction |
|
- | |||||
| 34 | 1158685 | Bend, Return Three Way |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 36 | 471088 | Clamp (2) |
|
- | |||||
| 37 | 1159832 | Flow, Divider |
|
- | |||||
| 38 | 1158652 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 1157015) |
|
$ 22.65 | |||||
| 40 | 1161216 | Tube, Feeder |
|
- | |||||
| 41 | 1166782 | Anticipator |
|
- | |||||
| 42 | 642080 | Clip, Anticipator |
|
- | |||||
| 43 | W11236646 | Washer (1) (Replaces: 1160880) |
|
Immediately | $ 13.26 | ||||
| 44 | 1161217 | Tube, Feeder |
|
- | |||||
| 45 | 1166093 | Tube, Discharge (bottom) |
|
- | |||||
| 46 | 1165674 | Bolt, Compressor |
|
- | |||||
| 47 | 855644 | Bend, Return (4) |
|
- | |||||
| 48 | 854624 | Bend, Return (4) |
|
- | |||||
| 49 | 855199 | Bend, Return (16) |
|
- | |||||
| 50 | 1163785 | Distributor |
|
- | |||||
| 52 | 1164087 | Tube, Discharge Top (includes Illus. 37,40,44) |
|
- | |||||
| LIT1166071 | Instructions, Installation |
|
- | ||||||
| LIT1158715 | Wiring Diagram |
|
- | ||||||
| LIT1158741 | Tech Sheet |
|
- | ||||||
| LIT1166503 | Use And Care Guide |
|
- | ||||||
| 20A | 1166220 | Harness, Wiring (compressor) (note: With This Harness Items 25 And 28 Are Not Required) |
|
- |
