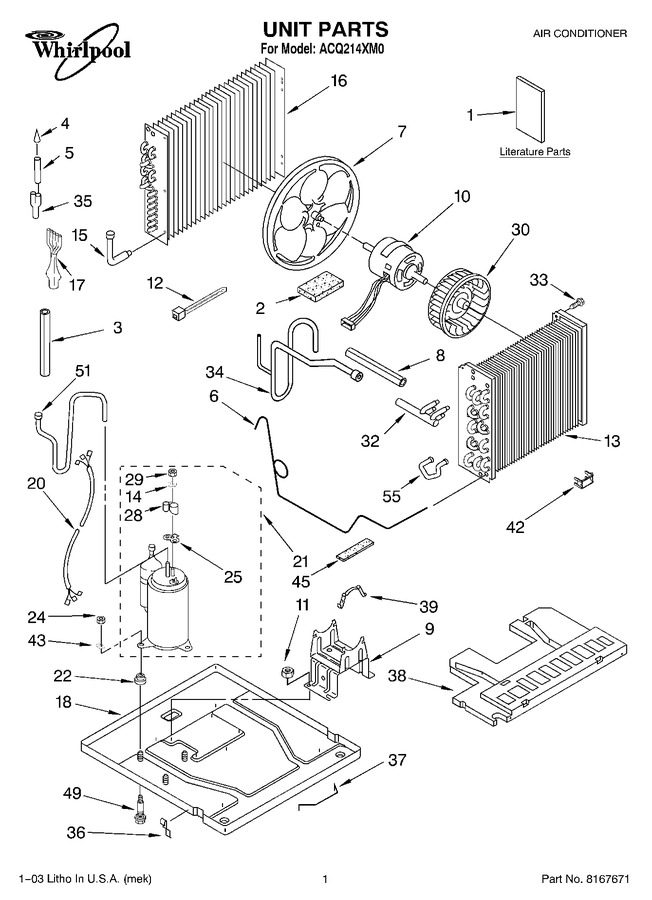

01 - Unit Parts
02 - Airflow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1185264 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT1187000 | Energy Guide |
|
- | |||||
| 1 | LIT1185536 | Literature Parts (use & Care Guide) |
|
- | |||||
| 2 | 1182480 | Putty, Sound Dampener |
|
- | |||||
| 3 | 1162344 | Dampener |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 1163768 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1186053 | Tube, Restrictor (4) |
|
- | |||||
| 7 | 1158665 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1185481 | Seal, Suction Tube |
|
- | |||||
| 9 | 1160672 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1186602 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 1159130) |
|
$ 7.47 | |||||
| 13 | 1186027 | Evaporator |
|
- | |||||
| 14 | 1182120 | Gasket, Nut |
|
- | |||||
| 15 | 1186100 | Tube, Connect |
|
- | |||||
| 16 | 1186032 | Condenser |
|
- | |||||
| 17 | 1184612 | Distributor |
|
- | |||||
| 18 | 1185503 | Base |
|
- | |||||
| 20 | 1187118 | Harness, Wiring (compressor) |
|
- | |||||
| 21 | 1185994 | Compressor |
|
- | |||||
| 22 | WP950021 | Grommet (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | 1182356 | Gasket, Terminal Cover |
|
- | |||||
| 28 | 1182355 | Cover, Terminal |
|
- | |||||
| 29 | W10833054 | Nut, Terminal Cover (Replaces: 1186128) |
|
- | |||||
| 30 | 1158443 | Wheel, Blower (evaporator) |
|
- | |||||
| 32 | 1186028 | Manifold, Suction |
|
- | |||||
| 33 | WP489069 | Screw (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 34 | 1186166 | Tube, Suction |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 36 | 471088 | Clamp (2) |
|
- | |||||
| 37 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 38 | 1185843 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 1157015) |
|
$ 22.65 | |||||
| 42 | 1185337 | Clip, Anticipator |
|
- | |||||
| 43 | W11236646 | Washer (3) (Replaces: 1160880) |
|
Immediately | $ 13.26 | ||||
| 45 | 1163759 | Seal, Restrictor Tube |
|
- | |||||
| 49 | 1165674 | Bolt, Compressor |
|
- | |||||
| 51 | 1186175 | Tube, Discharge |
|
- | |||||
| 55 | 1185265 | Bend, Return Evaporator (2) |
|
- |
