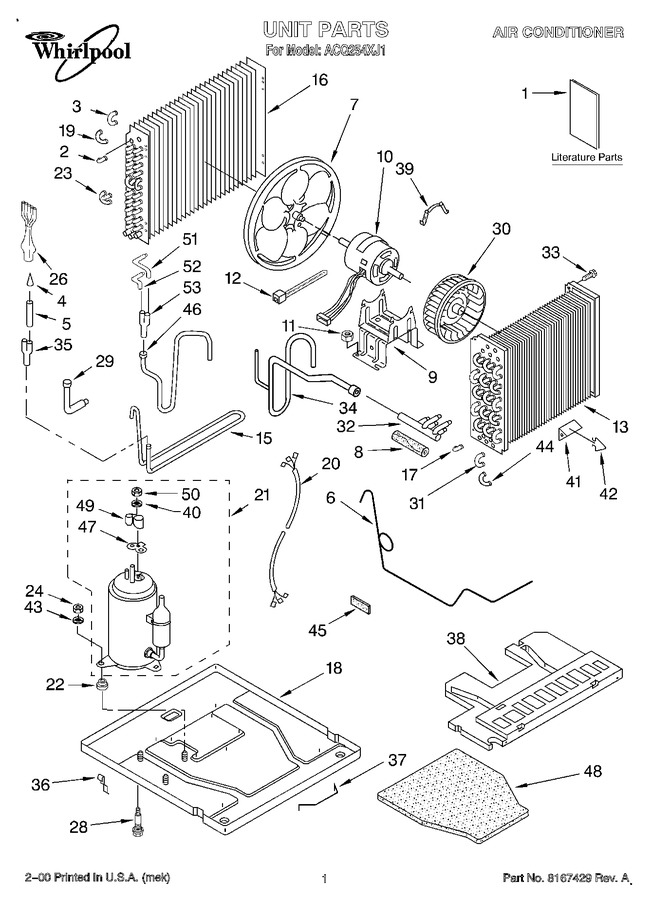

01 - Unit, Literature
02 - Air Flow And Control
03 - Cabinet
04 - Optional
05 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1182935 | Use & Care Guide |
|
- | |||||
| 1 | LIT1172260 | Wiring Diagram |
|
- | |||||
| 2 | 708532 | Bend, Return Condenser (30) |
|
- | |||||
| 3 | 708531 | Bend, Return Condenser (2) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 1163768 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1182809 | Tube, Restrictor (5) |
|
- | |||||
| 7 | 1158665 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1160870 | Seal, Suction Tube |
|
- | |||||
| 9 | 1160672 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1183428 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 602851) |
|
$ 7.47 | |||||
| 13 | 1169765 | Evaporator |
|
- | |||||
| 15 | 1183416 | Wetloop |
|
- | |||||
| 16 | 1160100 | Condenser |
|
- | |||||
| 17 | 854624 | Bend, Return Evaporator (10) |
|
- | |||||
| 18 | 1168486 | Base |
|
- | |||||
| 19 | 1156329 | Return Bend Condenser (1) |
|
- | |||||
| 20 | 1183656 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 1182808 | Compressor |
|
- | |||||
| 22 | 1165973 | Grommet (3) |
|
- | |||||
| 23 | 1158685 | Return Bend 3-way Condenser (1) |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 26 | 1163760 | Distributor |
|
- | |||||
| 28 | 1165674 | Bolt, Compressor |
|
- | |||||
| 29 | 1183830 | Tube, Wetloop Connect |
|
- | |||||
| 30 | 1162528 | Wheel, Blower (evaporator) |
|
- | |||||
| 31 | 855199 | Return Bend (10) Evaporator (7) |
|
- | |||||
| 32 | 1164563 | Manifold, Suction |
|
- | |||||
| 33 | WP489069 | Screw No.8-1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 34 | 1182751 | Tube, Suction |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 36 | 471088 | Clamp (2) |
|
- | |||||
| 37 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 38 | 1160656 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 1157015) |
|
$ 22.65 | |||||
| 40 | 1182120 | Gasket, Nut |
|
- | |||||
| 41 | 996773 | Anticipator |
|
- | |||||
| 42 | 475577 | Clip, Anticipator |
|
- | |||||
| 43 | W11236646 | Washer (3) (Replaces: 1160880) |
|
Immediately | $ 13.26 | ||||
| 44 | 855644 | Bend, Return |
|
- | |||||
| 45 | 1163759 | Seal, Restrictor Evaporator (10) Tube |
|
- | |||||
| 46 | 1182750 | Tube, Discharge |
|
- | |||||
| 47 | 1182118 | Gasket, Terminal Cover |
|
- | |||||
| 48 | 1167085 | Insulation, Base (bottom) |
|
- | |||||
| 49 | WP950036 | Cover, Terminal (Replaces: 1182119) |
|
$ 9.83 | |||||
| 50 | WP950027 | Nut, Hex (Replaces: 950027) |
|
$ 5.20 | |||||
| 51 | 1160357 | Tube, Feeder |
|
- | |||||
| 52 | 1160358 | Tube, Feeder |
|
- | |||||
| 53 | 1159832 | Tube, Flow Divider |
|
- |
