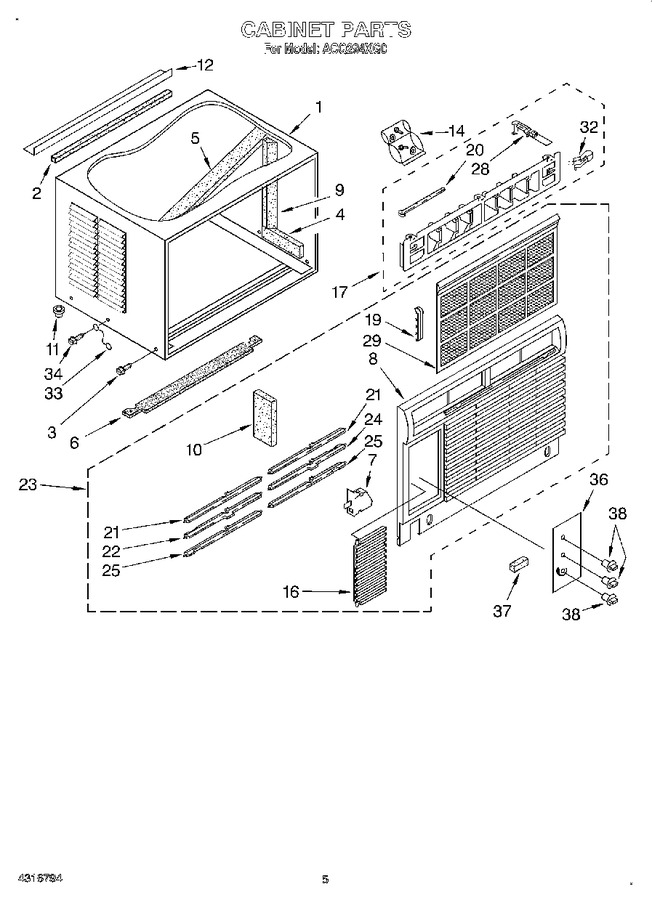

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1161335		Cabinet		Appelez-nous	-
2	1163784		Seal, Top Mounting Angle		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
4	1160818		Insulation, Cabinet Side (2)		Appelez-nous	-
5	1167203		Insulation, Cab.		Appelez-nous	-
6	1160768		Seal, Cab. Bottom		Appelez-nous	-
7	1166649		Monitor, Filter		Appelez-nous	-
8	1172374		Cabinet Front		Appelez-nous	-
9	1162099		Insulation, Cabinet Side (2)		Appelez-nous	-
10	1163767		Seal, Front (3)		Appelez-nous	-
11	997285		Cup, Condensate Drain		Appelez-nous	-
12	644271		Angle, Top Mounting		Appelez-nous	-
14	1166387		Bag, Accessory		Appelez-nous	-
16	1166642		Door, Control		Appelez-nous	-
17	1167096		Louver, Verticle		Appelez-nous	-
19	1166672		Link, Louver (horizontal)		Appelez-nous	-
20	1162077		Link, Vertical Louver (2)		Appelez-nous	-
21	1166643		Louver, Horizontal (8)		Appelez-nous	-
22	1166647		Louver, Horizontal (handle Left)		Appelez-nous	-
23	1172317		Front, Complete		Appelez-nous	-
24	1166648		Louver, Horizontal (handle Right)		Appelez-nous	-
25	1166645		Louver, Horizontal (notch Right)		Appelez-nous	-
25	1166644		Louver, Horizontal (notch Left)		Appelez-nous	-
28	1162078		Actuator, Louver (2)		Appelez-nous	-
29	1167296		Filter		Appelez-nous	-
32	1167095		Spring, Detent (2)		Appelez-nous	-
33	857022		Wire, Ground		Appelez-nous	-
34	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.37
36	1172370		Plate, Escutcheon		Appelez-nous	-
37	470036		Spacer, Escuthchon		Appelez-nous	-
38	1166715		Knobs, (3)		Appelez-nous	-
