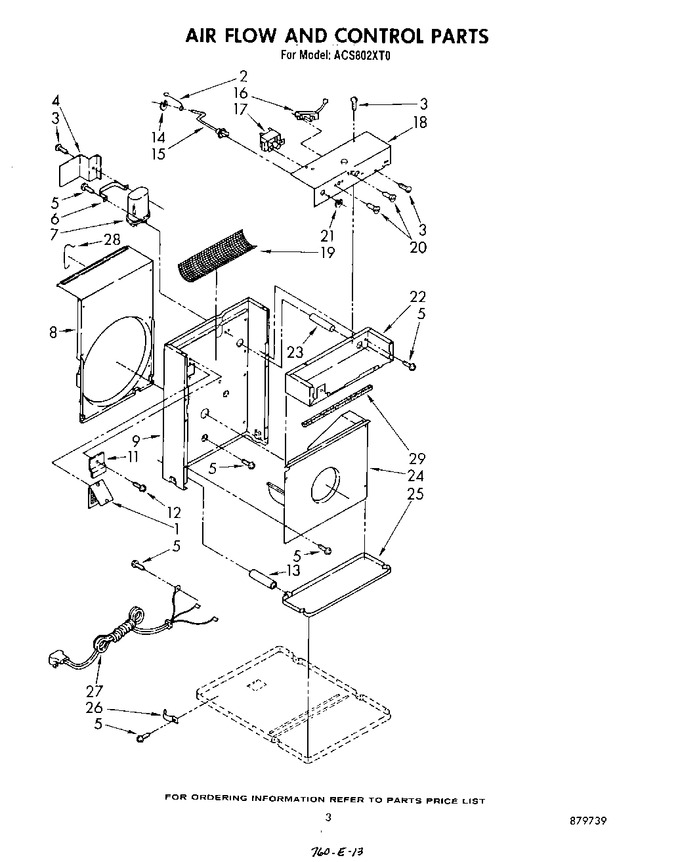

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 977891 | Door, Exhaust |
|
- | |||||
| 2 | 977903 | Link, Wire |
|
- | |||||
| 3 | WP965173 | Screw, 8 X 3/8 (Replaces: 487358) |
|
Immediately | $ 10.68 | ||||
| 4 | 977409 | Bracket, Capacitor |
|
- | |||||
| 5 | WP488729 | Screw, 8 X 1/2 (Replaces: 487895) |
|
Immediately | $ 7.45 | ||||
| 6 | 977672 | Clamp, Capacitor |
|
- | |||||
| 7 | 980930 | Capacitor, Running |
|
- | |||||
| 8 | 977663 | Shroud, Condenser |
|
- | |||||
| 9 | 980706 | Wall, Dividing Assembly |
|
- | |||||
| 11 | 977950 | Stop, Exhaust Door |
|
- | |||||
| 12 | WP302868 | Screw, 8 X 1/2 (Replaces: 977976) |
|
Immediately | $ 7.36 | ||||
| 13 | 977462 | Tube, Condensate Drain |
|
- | |||||
| 14 | 977452 | Clip |
|
- | |||||
| 15 | 977892 | Control, Exhaust Assembly |
|
- | |||||
| 16 | 977900 | Control, Temperature |
|
- | |||||
| 17 | 980931 | Switch, Rotary |
|
- | |||||
| 18 | 977909 | Cover, Control Box |
|
- | |||||
| 19 | 977690 | Guard, Hazard |
|
- | |||||
| 20 | 977838 | Screw, 6-32 X 1/4 |
|
- | |||||
| 21 | 832241 | Ring, Retainer |
|
- | |||||
| 22 | 977971 | Box, Control |
|
- | |||||
| 23 | 977752 | Tube, Wire Guard |
|
- | |||||
| 24 | 977489 | Housing, Blower Wheel |
|
- | |||||
| 25 | 977461 | Pan, Drain |
|
- | |||||
| 26 | 798356 | Clamp |
|
- | |||||
| 27 | 832114 | Cable, Appliance |
|
- | |||||
| 28 | 977470 | Retainer, Shroud Cover |
|
- | |||||
| 29 | 879739 | List, Repair Parts |
|
- | |||||
| 29 | WP279368 | Cement, Attach Insulation) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 29 | 469938 | Insulation, Fiberglass |
|
- | |||||
| 29 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 29 | 799351 | Thinner (1 Gal.) |
|
- | |||||
| 29 | 980933 | Sheet, Tech & Wiring Diagram |
|
- | |||||
| 29 | 980934 | Guide, Energy |
|
- | |||||
| 29 | 980927 | Guide, Use & Care |
|
- | |||||
| 29 | WP854334 | Seal, Strip (Replaces: 977662) |
|
$ 12.55 | |||||
| 29 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 29 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 29 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 29 | 212643 | Sealer, Gum (cabinets & Windows) (Replaces: 470168) |
|
Immediately | $ 86.78 |
