SELECT A DIAGRAM

01 - Unit, Literature


02 - Airflow And Control


03 - Cabinet


04 - Optional


05 - Sleeve Model Aow22w21 (optional)

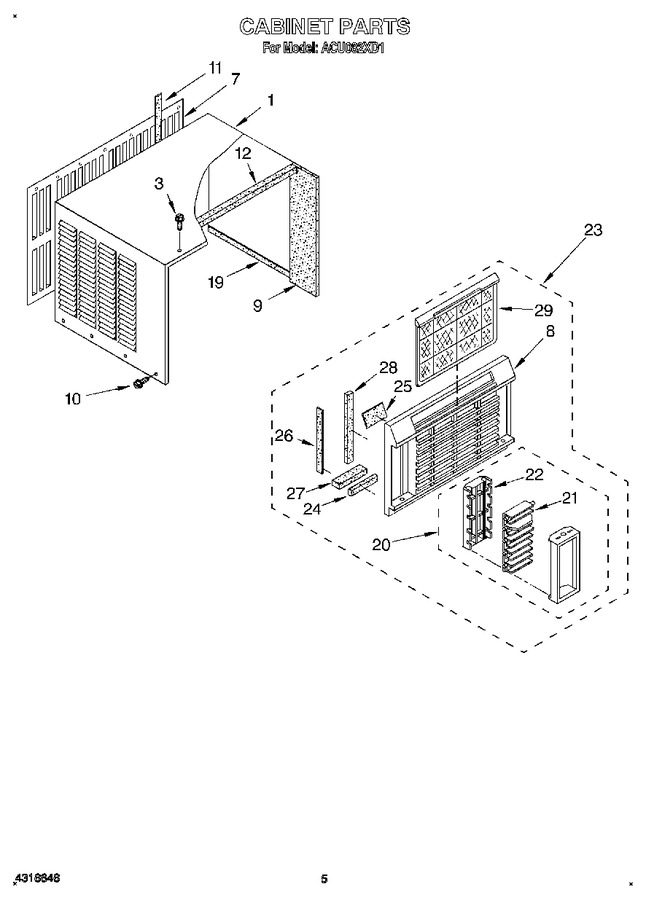

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1156956		Cabinet		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
7	1162972		Panel, Rear		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1161748		Insulation (2)		Appelez-nous	-
10	WP489069		Screw, 8 X 7/16 (6)   (Replaces: 1157158)			Immediately	$ 7.56
11	WP854334		Seal, Rear Grille   (Replaces: 1157621)				$ 12.55
12	WP854334		Seal, Cabinet Top   (Replaces: 1158269)				$ 12.55
19	1160092		Seal, Strip (2)		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1156974		Horzontal Louver (left Side).		Appelez-nous	-
21	1159333		Horzontal Louver (right, Side)		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1166519		Front, Complete		Appelez-nous	-
24	1161746		Seal, (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
27	1161205		Seal (2)		Appelez-nous	-
28	1161747		Insulation, Cabinet Side		Appelez-nous	-
29	1166496		Filter				$ 52.49

    View Diagram in Separate Window       Print Part List
