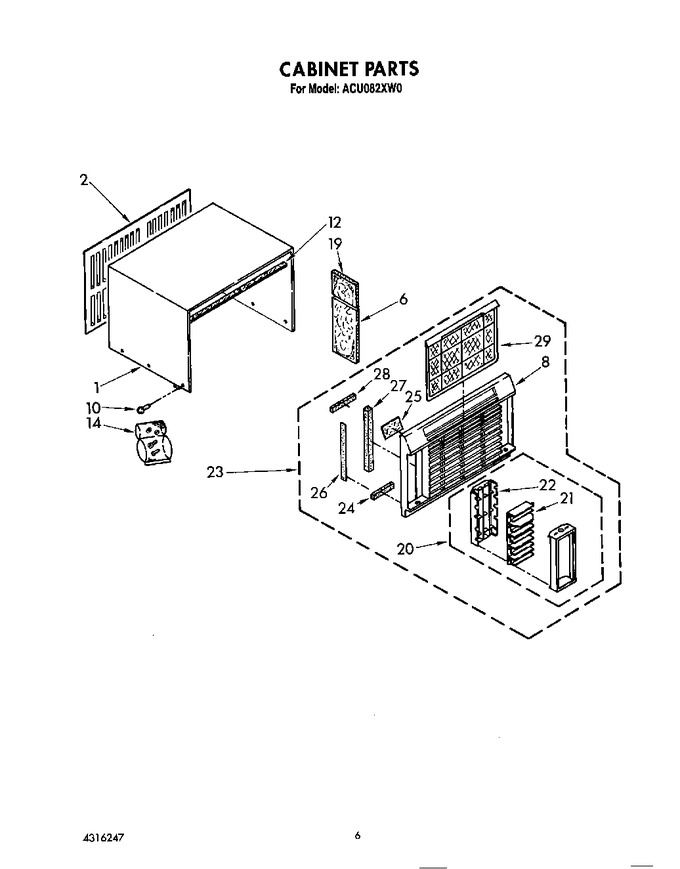

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1156956		Cabinet		Appelez-nous	-
2	1156968		Panel, Rear		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8 (3)   (Replaces: 1157158)			Immediately	$ 7.56
6	1158272		Seal, Cabinet Side (2)		Appelez-nous	-
8	1157676		Cabinet Front		Appelez-nous	-
10	WP489069		Screw, 8 X 7/16 (6)   (Replaces: 1157158)			Immediately	$ 7.56
12	WP854334		Seal, Cabinet Top   (Replaces: 1158269)				$ 12.55
19	1158264		Seal, Cabinet Side (2)		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1156974		Horzontal Louver		Appelez-nous	-
22	1156975		Ribs, Vertical		Appelez-nous	-
23	1158050		Front, Complete		Appelez-nous	-
24	1159080		Seal (2)		Appelez-nous	-
25	1159081		Seal		Appelez-nous	-
26	1159079		Seal (2)		Appelez-nous	-
27	1157624		Seal (2)		Appelez-nous	-
28	WP854334		Seal (2)   (Replaces: 1158270)				$ 12.55
29	1156976		Filter		Appelez-nous	-
