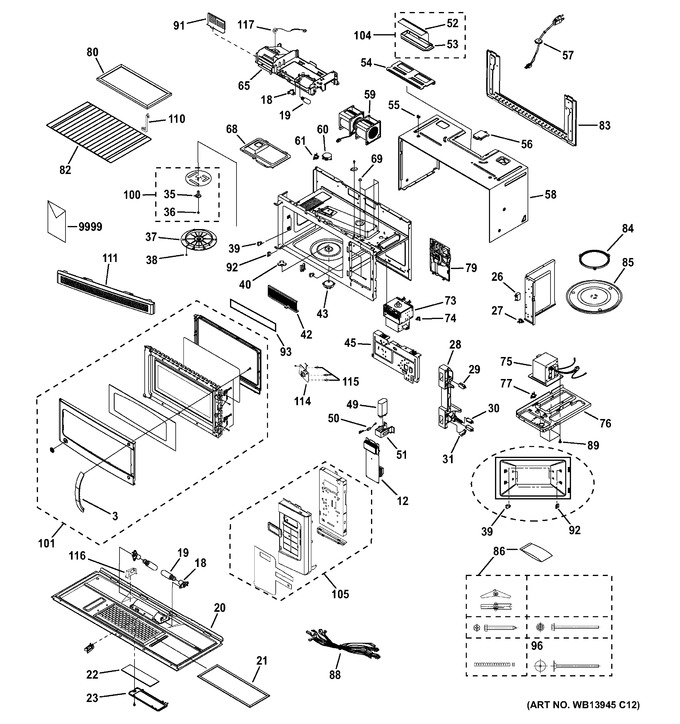

1 - Microwave


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	WB15X10224		Handle Asm Wh		Appelez-nous	-
12	WB27X11102		Smart Board		Appelez-nous	-
18	WG02L02138		Socket Lamp   (Replaces: WB08X10016)			Immediately	$ 9.20
19	WG02F00861		Lamp-incandescent   (Replaces: WB36X10003)			Immediately	$ 20.73
21	WG02F00523		Filter-air   (Replaces: WB06X10596)			Immediately	$ 66.42
22	WG02L00282		Glass Cooktop Lamp   (Replaces: WB36X10071)				$ 9.20
23	WB36X10217		Cover-glass		Appelez-nous	-
26	WB27X10170		Capacitor- Motor		Appelez-nous	-
26	WB24X799		Sensor-gas		Appelez-nous	-
27	WB27X10194		Tco Hood		Appelez-nous	-
28	WB06X10676		Latch-body		Appelez-nous	-
29	WB24X10038		Switch		Appelez-nous	-
30	WB24X10075		Switch-micro		Appelez-nous	-
31	WG02L00668		Lever-s/w   (Replaces: WB06X10128)				$ 15.54
35	WB06X10286		Holder-stirrer		Appelez-nous	-
36	WB06X10341		Holder-tip		Appelez-nous	-
37	WB06X10130		Cover-stirrer		Appelez-nous	-
38	WB06X10126		Button-lock		Appelez-nous	-
39	WB06X10467		Holder-rack-a		Appelez-nous	-
40	WB06X10420		Coupler Tt		Appelez-nous	-
42	WB06X10716		Cover-front		Appelez-nous	-
43	WB26X10233		Turntable, Motor		Appelez-nous	-
45	WB06X10147		Bracket-air Guide "a"		Appelez-nous	-
49	WG02F00257		Capacitor 2100v/0.91 Mic   (Replaces: WB27X10011)				$ 58.80
50	WB27X10817		H.v. Diode		Appelez-nous	-
51	WB06X10713		Bracket-hvc		Appelez-nous	-
52	WB06X10715		Cover-damper		Appelez-nous	-
53	DE72-40022A		Damper-main   (Replaces: WB06X10133)			Immediately	$ 12.46
54	WB06X10714		Bracket-v/t Motor		Appelez-nous	-
55	WG02A00187		Nut Top Mounting   (Replaces: WB01X10071)				$ 10.81
56	WB06X10122		Bracket-power Cord		Appelez-nous	-
57	WB18X10200		Power Cord Assy		Appelez-nous	-
58	WB56X10728		Case-outer Wh		Appelez-nous	-
59	WB26X10210		Motor Ventilation		Appelez-nous	-
60	WG02F04026		Motor-drive   (Replaces: WB26X10037)				$ 47.61
61	WB27X10195		S/w Thermo		Appelez-nous	-
65	WB27X10422		Upper Duct Assy		Appelez-nous	-
68	WB06X10121		Wb06x10148		Appelez-nous	-
69	WB01X10065		Nut Magnetron		Appelez-nous	-
73	WB27X10939		Asm-magnetron				$ 298.77
74	WB27X10166		Thermostat		Appelez-nous	-
75	WB27X10938		Transformer-h.v		Appelez-nous	-
76	WB56X10726		Base-plate		Appelez-nous	-
77	WB21X535		Tco -bottom		Appelez-nous	-
79	WB26X10242		Motor Mag Fan Asm		Appelez-nous	-
80	WB2X9883		Filter Ch 11 1/8 X 6 1/8		Appelez-nous	-
82	WB48X10053		Rack Wire		Appelez-nous	-
83	WB56X10446		Plate Mounting Asm		Appelez-nous	-
84	WB06X10139		Roller Guide Ring		Appelez-nous	-
85	WG02L00538		Cooking-tray   (Replaces: WB49X10002)				$ 63.90
86	WG02F05550		Mounting Hardware Asm   (Replaces: WB01X10181)			Immediately	$ 45.47
88	WB18X10337		Wire Harness-a		Appelez-nous	-
89	WB01X10084		Screw Washer		Appelez-nous	-
91	WB06X10434		Bracket-barrier		Appelez-nous	-
92	WB06X10468		Holder-rack-b		Appelez-nous	-
93	49-40202		Cooking Guide-label		Appelez-nous	-
96	DE60-20066A		Bolt-flat Cab Mounting   (Replaces: WB01X10180)			Immediately	$ 20.62
100	WB06X10416		Stirrer Assy		Appelez-nous	-
101	WG02L01927		Door Asm Wh   (Replaces: WB56X10723)				$ 178.47
104	WB06X10826		Asm Hood Damper		Appelez-nous	-
105	WB07X11061		Asm-contol Panel		Appelez-nous	-
110	WB02X24085		Wire Rack Spacer		Appelez-nous	-
111	WB07X11037		Grille		Appelez-nous	-
114	WB02X11200		Noise Filter Asm				$ 158.46
115	WB6X549		Holder-sensor		Appelez-nous	-
117	WB27X11103		Harness Humidity Sensor		Appelez-nous	-
9999	49-40539		Template Rear		Appelez-nous	-
9999	49-40538		Instructions Install		Appelez-nous	-
9999	49-40166		Template Top		Appelez-nous	-
9999	31-41036		Pm Mini Manual		Appelez-nous	-
9999	49-40534		Use & Care		Appelez-nous	-
