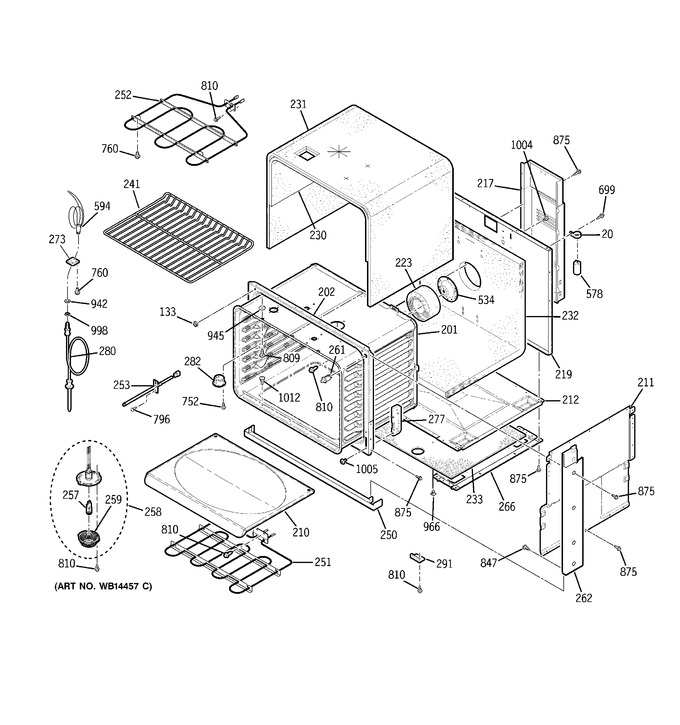

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Control Panel
2 - Cooktop
3 - Body Parts
4 - Door
5 - Door Lock
6 - Convection Fan
7 - Cooling Fan
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 20 | WB02T10152 | Bracket Capacitor |
|
- | |||||
| 133 | WG02F03972 | Frt Fr Door Bumper (Replaces: WB01T10022) |
|
$ 5.72 | |||||
| 201 | WB63T10084 | Wrapper Ovn Cav Lwr |
|
- | |||||
| 202 | WB63T10083 | Frame Frt Lwr |
|
- | |||||
| 210 | WB63T10034 | False Bottom |
|
- | |||||
| 211 | WB02T10284 | Retainer Insln Sde |
|
- | |||||
| 212 | WB02T10372 | Retainer Insln Btm |
|
- | |||||
| 217 | WB34K10046 | Cover Wire Rear |
|
- | |||||
| 219 | WB02T10377 | Retainer Insln Back |
|
- | |||||
| 223 | WB35K5117 | Ov Insulation Support |
|
- | |||||
| 230 | WB35T10126 | Insulation Top |
|
- | |||||
| 231 | WB35T10074 | Insulation (out) |
|
- | |||||
| 232 | WB35K5116 | Insulation Back & Btm |
|
- | |||||
| 233 | WB35K10024 | Insulation Base |
|
- | |||||
| 241 | WB28T10049 | Rack Oven |
|
- | |||||
| 250 | WB07K10139 | Trim Lower Bk |
|
- | |||||
| 250 | WB07K10143 | Trim Lower Wh |
|
- | |||||
| 250 | WB07K10154 | Trim Lower Bq |
|
- | |||||
| 251 | WG02F04319 | Element Bake (Replaces: WB44T10055) |
|
$ 146.89 | |||||
| 252 | WS01F05473 | Unit Broil Asm (dlx) (Replaces: WB44T10043) |
|
$ 131.62 | |||||
| 253 | WG02F01436 | Sensor Asm (Replaces: WB23T10015) |
|
Immediately | $ 63.62 | ||||
| 257 | WG02F02723 | Lamp Halogen (Replaces: WB08T10021) |
|
Immediately | $ 51.12 | ||||
| 258 | WB25T10026 | Lamp Halogen Asm |
|
- | |||||
| 259 | WG02F05610 | Lens Ovn Lamp (Replaces: WB25T10027) |
|
$ 25.73 | |||||
| 261 | WB24T10065 | Switch Light Spot |
|
$ 45.15 | |||||
| 262 | WB07T10411 | Trim Vert Sde |
|
- | |||||
| 262 | WB07T10409 | Trim Vert Sde |
|
- | |||||
| 262 | WB07T10412 | Trim Vert Sde |
|
- | |||||
| 262 | WB07T10410 | Trim Vert Sde |
|
- | |||||
| 262 | WB07T10408 | Trim Vert Sde |
|
- | |||||
| 262 | WB07T10407 | Trim Vert Sde |
|
- | |||||
| 266 | WB02K10048 | Base Rail |
|
- | |||||
| 273 | WB2K5365 | Cover |
|
- | |||||
| 273 | WB2X8309 | Probe Cover |
|
- | |||||
| 273 | WB34K5140 | Pr0be Cover |
|
- | |||||
| 277 | WB10T10083 | Receiver Hinge |
|
- | |||||
| 280 | WG02F05721 | Probe Thermistor (Replaces: WB20T10025) |
|
Immediately | $ 63.86 | ||||
| 282 | WB28T10073 | Tube Vent |
|
- | |||||
| 291 | WB2X9152 | Cover |
|
- | |||||
| 534 | WB02T10249 | Support Ovn Cav |
|
- | |||||
| 534 | WB26T10015 | Support Ovn Cav |
|
- | |||||
| 578 | WB27T10503 | Capacitor Motor |
|
- | |||||
| 594 | WB08T10041 | Harness Wire Probe |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 752 | WG02A00488 | Screw (Replaces: WB1K5200) |
|
$ 4.20 | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 796 | WB1X1178 | Screw |
|
- | |||||
| 809 | WG02A00781 | Screw (Replaces: WB1X1137) |
|
$ 14.29 | |||||
| 810 | WB1X1253 | Screw |
|
- | |||||
| 847 | WB1X1118 | Screw-nickel |
|
- | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 942 | WB1X5573 | Washer |
|
- | |||||
| 945 | WB1K5046 | Lockwasher |
|
- | |||||
| 966 | WB2X9573 | Clip |
|
- | |||||
| 998 | WG02A00927 | Nut (Replaces: WB1X5572) |
|
$ 67.26 |
