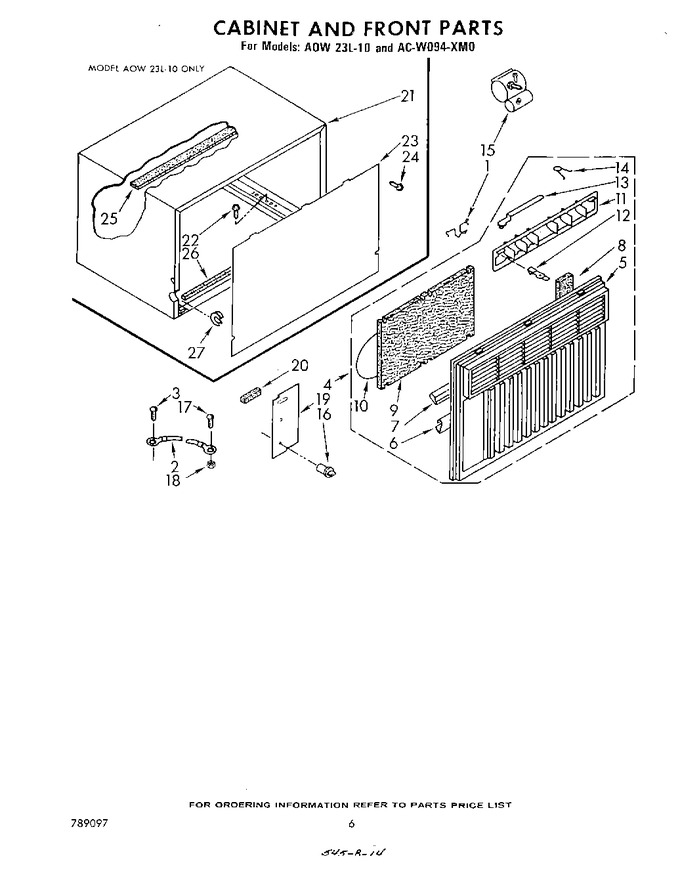

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	649966		Clip, Cabinet Front		Appelez-nous	-
2	857017		Wire, Ground		Appelez-nous	-
3	488854		Screw, St 8-32 X 3/8		Appelez-nous	-
4	947658		Front, Cabinet Assembly		Appelez-nous	-
5	947659		Front, Cabinet		Appelez-nous	-
6	WP854334		Seal, Cabinet Front   (Replaces: 647913)				$ 12.55
7	647914		Seal, Cabinet Front		Appelez-nous	-
8	649198		Seal		Appelez-nous	-
9	648008		Filter		Appelez-nous	-
10	476707		Retainer, Filter		Appelez-nous	-
11	647798		Louver, Vertical		Appelez-nous	-
12	644165		Handle, Verticle Louver (2)		Appelez-nous	-
13	647799		Link, Vertical Louver (2)		Appelez-nous	-
14	641484		Spring, Detent (2)				$ 150.14
15	947672		Bag, Accessory		Appelez-nous	-
16	947264		Knob, Control (2)		Appelez-nous	-
17	488853		Screw, Mach 8-32 X 3/8		Appelez-nous	-
18	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
19	950536		Plate, Escutcheon		Appelez-nous	-
20	470036		Spacer, Escutcheon Plate		Appelez-nous	-
21	857273		Xcabinet (requires Insulation 649939)		Appelez-nous	-
22	487371		Xscrew, Wood No.10 X 3/4 (8)		Appelez-nous	-
23	853974		Panel, Front		Appelez-nous	-
24	WP487353		Xscrew, Sm 6-18 X 1/2a (2)   (Replaces: 488374)				$ 7.16
25	857271		Insulation, Cabinet (l.s.)		Appelez-nous	-
26	998961		Seal, Cabinet (bottom)		Appelez-nous	-
27	647849		Xgrommet, Appliance Cable		Appelez-nous	-
	647847		Xinsulation, Cabinet (r.s.)		Appelez-nous	-
	649972		Xseal, Cabinet (weather)		Appelez-nous	-
	649973		Xinsulation, Cabinet (top)		Appelez-nous	-
