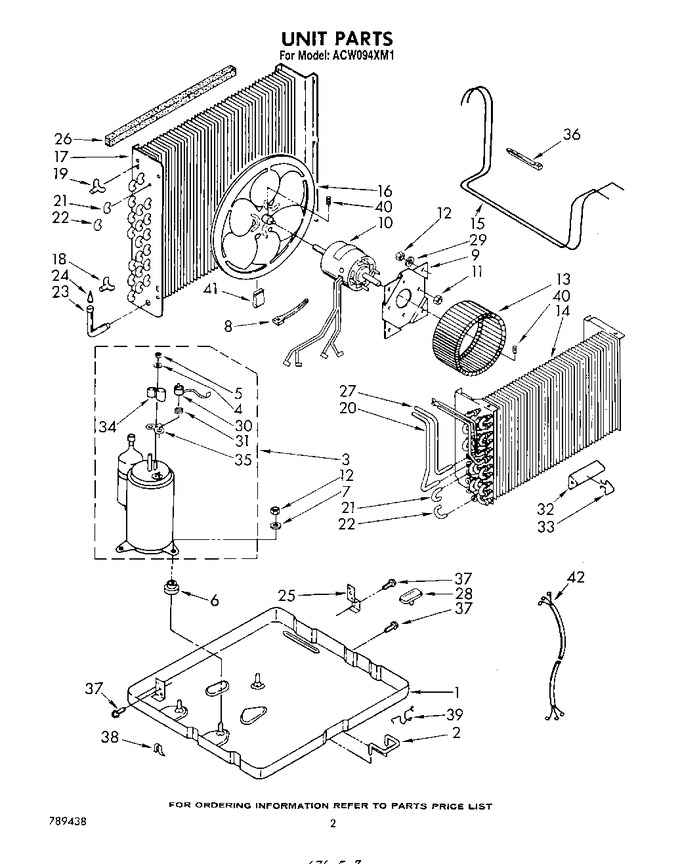

SELECT A DIAGRAM

02 - Unit


03 - Airflow And Control


04 - Front , Cabinet


05 - Lit/optional


06 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	950066		Base		Appelez-nous	-
2	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
3	819118		Compressor Assembly		Appelez-nous	-
4	950037		Gasket, Nut		Appelez-nous	-
5	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
6	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
7	489108		Washer (3)		Appelez-nous	-
8	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
9	998024		Plate, Fan Motor		Appelez-nous	-
10	948206		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex Keps 8-32 (4)   (Replaces: 488130)				$ 6.59
12	858122		Nut, Lock		Appelez-nous	-
13	859495		Wheel, Blower		Appelez-nous	-
14	950174		Evaporator		Appelez-nous	-
15	951539		Tube, Restrictor (2) (length 40.0``)		Appelez-nous	-
16	859496		Blade, Fan		Appelez-nous	-
17	951538		Condenser		Appelez-nous	-
18	953169		Bend, Return (3-way)		Appelez-nous	-
19	476078		Bend, Return (3-way)		Appelez-nous	-
20	993755		Tube, Outlet (front)		Appelez-nous	-
21	855199		Bend, Return Condenser (22) Evaporator (15)		Appelez-nous	-
22	854624		Bend, Return Condenser (3) Evaporator (4)		Appelez-nous	-
23	484230		Tube, Outlet (includes No.24)		Appelez-nous	-
24	49599		Strainer, Tube		Appelez-nous	-
25	647824		Condenser, Support (r.s.)		Appelez-nous	-
26	WP854334		Seal   (Replaces: 854681)				$ 12.55
27	993756		Tube, Outlet (rear)		Appelez-nous	-
28	647850		Cup, Condensate		Appelez-nous	-
29	470280		Washer, Shim		Appelez-nous	-
30	1156038		Overload		Appelez-nous	-
31	950032		Spring, Overload		Appelez-nous	-
32	475573		Anticipator, Temperature		Appelez-nous	-
33	475577		Clip, Anticipator		Appelez-nous	-
34	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
35	WP950035		Gasket, Cover   (Replaces: 950035)				$ 78.01
36	WPW10339879		Tie, Tube (4)   (Replaces: 612805)				$ 7.47
37	WP489069		Screw, Sheet Metal No.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
38	642684		Clamp, Restrictor Tube		Appelez-nous	-
39	949634		Clip, Mtg. (2) (base To Front)		Appelez-nous	-
40	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
41	876034		Clip, Balancing		Appelez-nous	-
42	484136		Harness, Wiring		Appelez-nous	-
	LIT950356		Guide, Use And Care		Appelez-nous	-
	LIT789438		List, Repair Parts		Appelez-nous	-
	LIT952043		Guide, Energy		Appelez-nous	-
	LIT1156045		Sheet, Tech And Wiring Diagram		Appelez-nous	-
