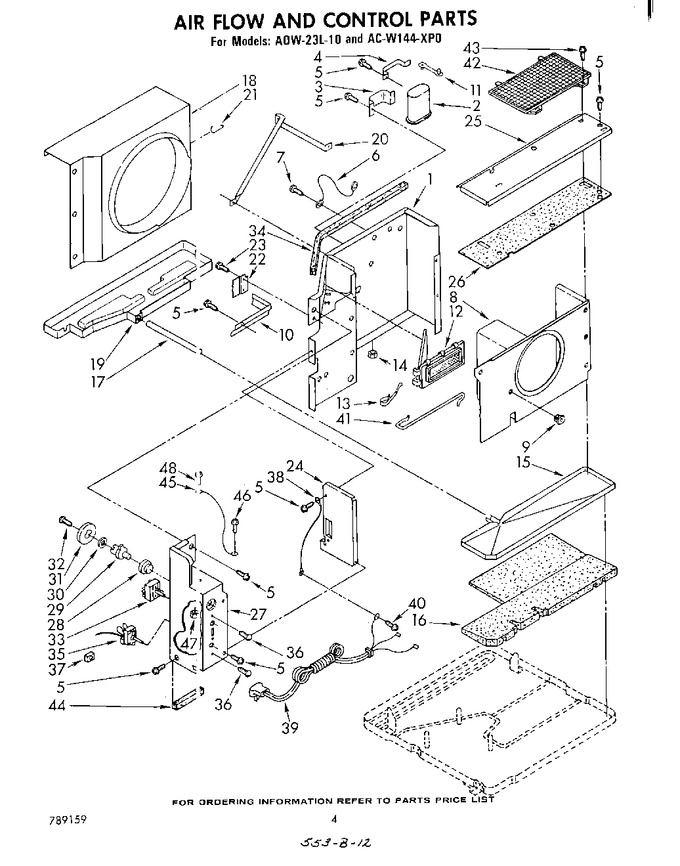

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 998237 | Wall, Dividing (requires Insulation 649939) |
|
- | |||||
| 2 | 951291 | Capacitor, Run |
|
- | |||||
| 3 | 852992 | Bracket, Running Capacitor |
|
- | |||||
| 4 | 475844 | Bracket, Running Capacitor |
|
- | |||||
| 5 | WP489069 | Screw, Sheet Metal No.8 X 1/2a (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 6 | 948285 | Wire, Ground (capacitor) |
|
- | |||||
| 7 | WPW10141604 | Screw, 8-32 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 8 | 852875 | Housing, Blower Wheel |
|
- | |||||
| 9 | 487808 | Fastener, Snap (2) |
|
- | |||||
| 10 | 852317 | Channel, Wiring |
|
- | |||||
| 11 | 648791 | Clamp, Cable |
|
- | |||||
| 12 | 649720 | Door, Exhaust |
|
- | |||||
| 13 | 859369 | Spring, Exhaust Door |
|
- | |||||
| 14 | 649620 | Clip, Speed |
|
- | |||||
| 15 | 853268 | Pan, Evaporator Condensate |
|
- | |||||
| 16 | 853269 | Insulation, Condensate Pan |
|
- | |||||
| 17 | 49181 | Tube, Condensate |
|
- | |||||
| 18 | 647862 | Shroud, Condenser |
|
- | |||||
| 19 | 859238 | Pan, Condenser Condensaste |
|
- | |||||
| 20 | 852318 | Support, Unit |
|
- | |||||
| 21 | 647873 | Retainer, Shroud Cover (3) |
|
- | |||||
| 22 | 994399 | Cover, Dividing Wall |
|
- | |||||
| 23 | WP965173 | Screw, Sheet Metal No.8 X 3/8z (Replaces: 487415) |
|
Immediately | $ 10.68 | ||||
| 24 | 852994 | Wall, Dividing L.s. |
|
- | |||||
| 25 | 856957 | Cover, Evaporator |
|
- | |||||
| 26 | 948410 | Insulation, Evaporator Cover |
|
- | |||||
| 27 | 994174 | Box, Control |
|
- | |||||
| 28 | 647879 | Bushing, Control Shaft |
|
- | |||||
| 29 | 852023 | Shaft, Control |
|
- | |||||
| 30 | 00647881 | Washer, Spring (Replaces: 647881) |
|
$ 366.51 | |||||
| 31 | 647882 | Cam, Control |
|
- | |||||
| 32 | WP98165 | Screw, 8-16 X 5/8 (Replaces: 489130) |
|
$ 7.71 | |||||
| 33 | 950523 | Switch, Rotary |
|
- | |||||
| 34 | WP854334 | Seal, Strip (Replaces: 950155) |
|
$ 12.55 | |||||
| 35 | 949431 | Control, Tempetature |
|
- | |||||
| 36 | 488734 | Screw, Mach 6-32 X .175 |
|
- | |||||
| 37 | 647865 | Grommet, Wiring |
|
- | |||||
| 38 | 857634 | Wire, Ground (dividing Wall) |
|
- | |||||
| 39 | 649070 | Cable, Appliance |
|
- | |||||
| 40 | WPW10141604 | Screw, 8-32 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 41 | 859370 | Wire, Control (red) |
|
- | |||||
| 42 | 997949 | Guard, Blower Wheel |
|
- | |||||
| 43 | WP488729 | Screw, Sems Sm No.8 X 1/2a (2) (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 44 | WP854334 | Seal, Strip (Replaces: 949379) |
|
$ 12.55 | |||||
| 45 | 857017 | Wire, Grounding (base) |
|
- | |||||
| 46 | 488854 | Screw, 8-32 X 3/8 |
|
- | |||||
| 48 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 48 | 488853 | Screw, Mach 8-32 X 3/8 |
|
- | |||||
| 48 | 212643 | Sealer, Gum (cabinet & Windows) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 48 | 854937 | Insulation, Cabinet (rigth Side) |
|
- | |||||
| 48 | 854938 | Insulation, Cabinet (left Side) |
|
- | |||||
| 48 | 855438 | Insulation, Cabinet (top) |
|
- | |||||
| 48 | 997236 | Insulation, Base |
|
- | |||||
| 48 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 48 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 48 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 48 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| LIT789159 | List, Parts |
|
- | ||||||
| LIT951420 | Guide, Energy |
|
- | ||||||
| LIT950356 | Guide, Use And Care |
|
- | ||||||
| LIT951418 | Sheet, Tech (service Information) |
|
- |
