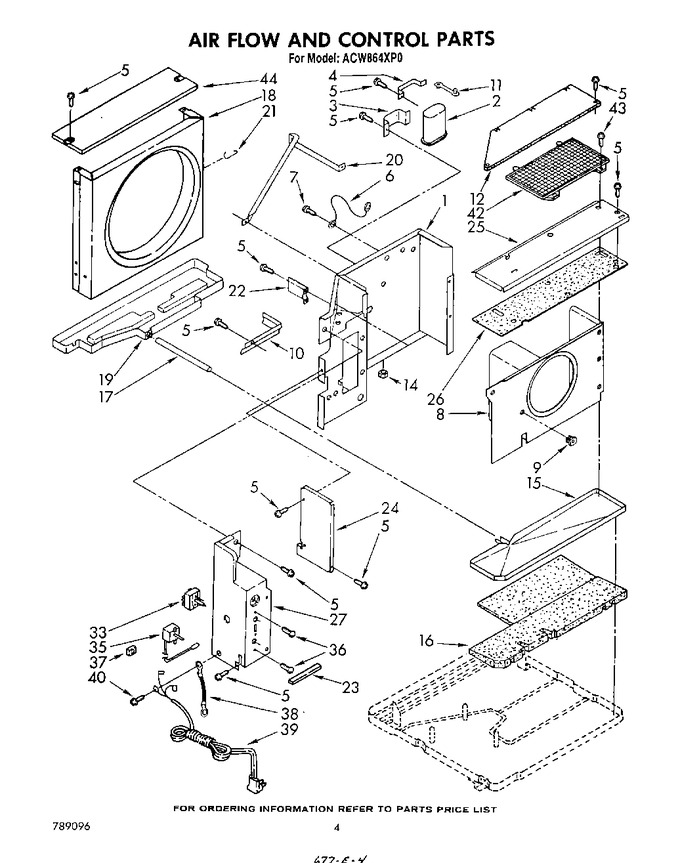

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	947417		Wall, Dividing (requires Insulation 649939)		Appelez-nous	-
2	949092		Capacitor, Running		Appelez-nous	-
3	852992		Bracket, Running Capacitor		Appelez-nous	-
4	475844		Bracket, Running Capacitor		Appelez-nous	-
5	WP489069		Screw, Sheet Metal No.8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
6	948285		Wire, Capacitor Ground		Appelez-nous	-
7	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
8	852875		Housing, Blower Wheel		Appelez-nous	-
9	487808		Fastener, Snap (2)		Appelez-nous	-
10	852317		Channel, Wiring		Appelez-nous	-
11	648791		Clamp, Cable		Appelez-nous	-
12	947943		Cover, Discharge		Appelez-nous	-
14	853831		Clip, Speed		Appelez-nous	-
15	853268		Pan, Evaporator Condensate		Appelez-nous	-
16	853269		Insulation, Condendate Pan		Appelez-nous	-
17	465777		Tube, Condensate		Appelez-nous	-
18	853356		Shroud, Condenser		Appelez-nous	-
19	853391		Pan, Condenser Condensaste		Appelez-nous	-
20	852318		Support, Unit		Appelez-nous	-
21	647873		Retainer, Shroud Cover (3)		Appelez-nous	-
22	853329		Cover, Dividing		Appelez-nous	-
23	WP854334		Wall, Seal   (Replaces: 949379)				$ 12.55
24	852994		Wall, Dividing L.s.		Appelez-nous	-
25	856957		Cover, Evaporator		Appelez-nous	-
26	948410		Insulation, Evaporator Cover		Appelez-nous	-
27	952362		Box, Control		Appelez-nous	-
33	950523		Switch, Rotary		Appelez-nous	-
35	949431		Control, Tempetature		Appelez-nous	-
36	488734		Screw, Mach 6-32 X .175 (2)		Appelez-nous	-
37	647865		Grommet, Wiring		Appelez-nous	-
38	857634		Wire, Ground		Appelez-nous	-
39	997694		Cable, Appliance		Appelez-nous	-
40	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
42	997949		Guard, Blower Wheel		Appelez-nous	-
43	WP488729		Screw, Sems Sm No.8 X 1/2a (2)   (Replaces: 487910)			Immediately	$ 7.45
44	813610		Cord, Retainer (winter, Cover)				$ 5.71
44	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
44	47263		Wire, White (25 Ft.)		Appelez-nous	-
44	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 104.81
44	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
44	484069		Cover, Winter				$ 62.49
44	853390		Cover, Shroud (condenser)		Appelez-nous	-
44	212643		Sealer, Gum (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
44	47261		Wire, Black (25 Ft.)		Appelez-nous	-
