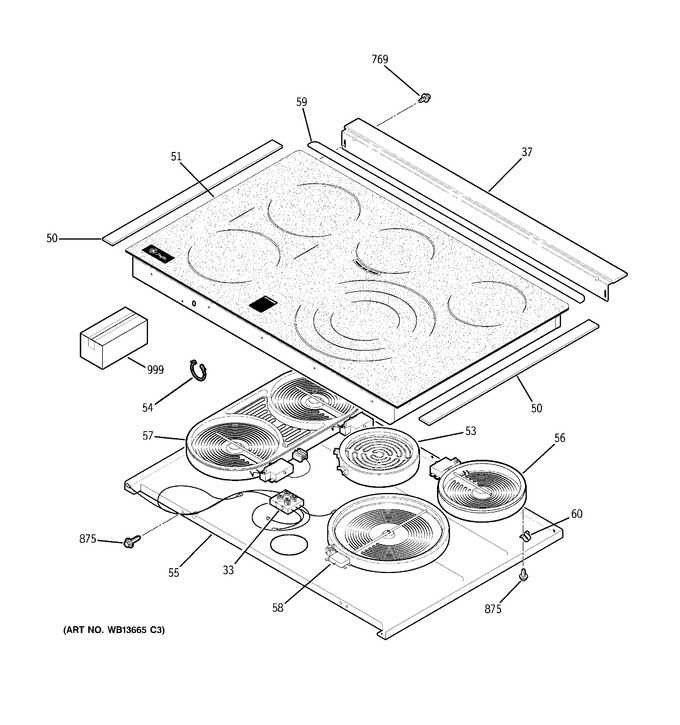

SELECT A DIAGRAM

1 - Control Panel


2 - Cooktop


3 - Body Parts


4 - Door


5 - Door Lock


6 - Convection Fan


7 - Cooling Fan


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	WG02F05647		Module Indicator Light   (Replaces: WB18T10349)				$ 45.10
37	WB07K10156		Backsplash Filler Bqt		Appelez-nous	-
37	WB07K10157		Filler Backsplash (wht)		Appelez-nous	-
37	WB36K10239		Filler Backsplash (blk)		Appelez-nous	-
50	WG02L02011		Gasket Maintop Lh   (Replaces: WB02T10320)			Immediately	$ 11.44
50	WG02L02012		Gasket Maintop Rh   (Replaces: WB02T10319)				$ 14.29
51	WB62T10695		Maintop Glass Asm (bq)				$ 543.29
51	WB62T10694		Maintop Glass Asm (bk)		Appelez-nous	-
51	WB62T10696		Maintop Glass Asm (wh)		Appelez-nous	-
53	WS01F01171		Element Radiant 6 Warmer   (Replaces: WB30T10124)			Immediately	$ 54.23
54	WB01T10050		Hanger Cable		Appelez-nous	-
55	WB61K10010		Burner Box Bottom		Appelez-nous	-
56	WB30T10127		Element Haliant 6 In		Appelez-nous	-
57	WB30T10141		Element Radnt Bridge		Appelez-nous	-
58	WG02F02055		Element Haliant 12 Trpl   (Replaces: WB30T10126)			Immediately	$ 189.77
59	WB02T10150		Gasket Maintop		Appelez-nous	-
60	WS01A00689		Radiant Element Spring   (Replaces: WB09T10002)				$ 3.57
769	WB1X500		Scr 8-18 B Hxw 1/4 S		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
999	WB18T10386		Harness Wire Glass Touch		Appelez-nous	-
999	31-10621		Instruction Install		Appelez-nous	-
999	31-14743		Manual Mini & Wd Asm		Appelez-nous	-
999	49-80543		Manual Use & Care		Appelez-nous	-
999	WB64X93		Glass Cleaner		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
