1 - Gas & Burner Parts


2 - Control Panel


3 - Cooktop


4 - Body Parts


5 - Door


6 - Door Lock


7 - Cooling Fan

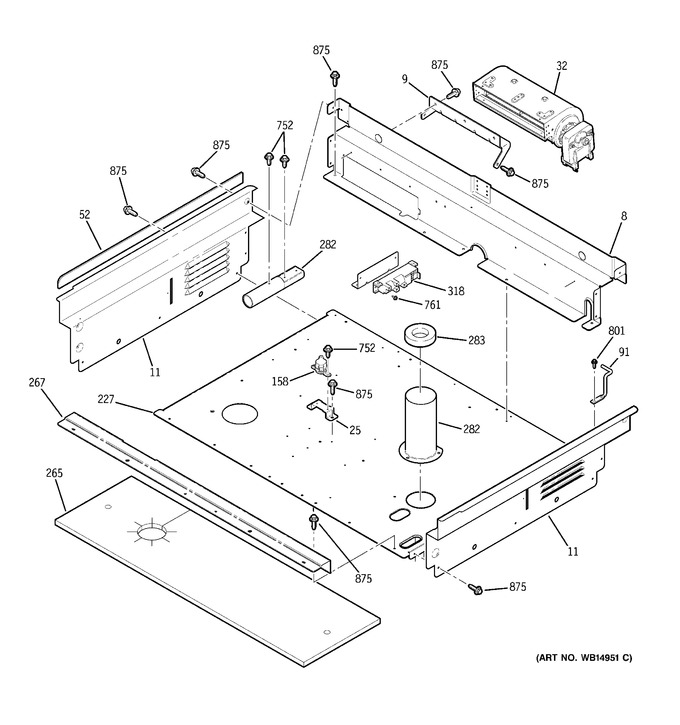

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	WB07T10694		Extension Rear		Appelez-nous	-
9	WB02T10341		Bracket Blower		Appelez-nous	-
11	WB07T10537		Extension Side Lt		Appelez-nous	-
11	WB07T10536		Extension Side Rt		Appelez-nous	-
25	WB02T10270		Bracket Switch		Appelez-nous	-
32	WG02F05207		Blower Tangential 60mm   (Replaces: WB26T10041)				$ 143.06
52	WG02L02011		Gasket Maintop Lh   (Replaces: WB02T10320)			Immediately	$ 11.44
52	WG02L02012		Gasket Maintop Rh   (Replaces: WB02T10319)				$ 14.29
91	WB10T10097		Hinge Maintop Lt		Appelez-nous	-
91	WB10T10096		Hinge Maintop Rt		Appelez-nous	-
158	WB24T10140		Switch Limit (l1)		Appelez-nous	-
227	WB02T10344		Retainer Insln Top		Appelez-nous	-
265	WB35T10233		Insulation Bbb Harness		Appelez-nous	-
267	WB07T10500		Trim Asm		Appelez-nous	-
282	WB28T10203		Tube Oven Vent		Appelez-nous	-
283	WB35T10092		Insulation Vnt Tbe		Appelez-nous	-
318	WG02F16815		Module Spark (4+0)   (Replaces: WB13T10079)				$ 51.54
752	WG02A00488		Screw   (Replaces: WB1K5200)				$ 4.20
761	WG02A00487		Scr 8-18x.450 Ab Flt20 S   (Replaces: WB01T10110)				$ 4.78
801	WB1M1		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
