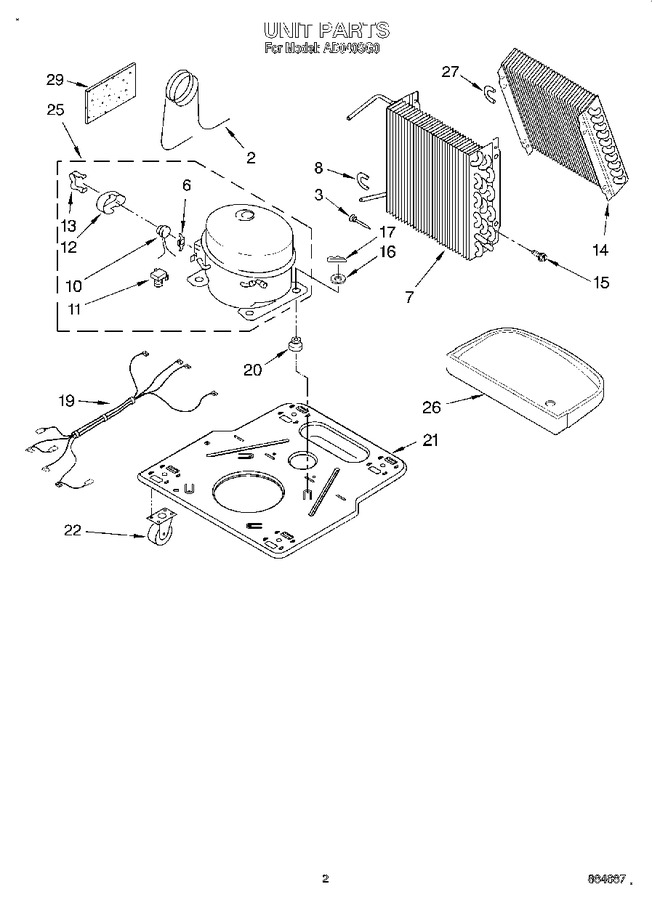

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1168728		Tube, Restrictor (length 36.00``)		Appelez-nous	-
3	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
6	950061		Spring, Overload		Appelez-nous	-
7	1168724		Condenser		Appelez-nous	-
8	708532		Bend, Return (9)		Appelez-nous	-
10	1163837		Overload, Protector		Appelez-nous	-
11	950058		Relay, Start		Appelez-nous	-
12	950055		Cover, Terminal		Appelez-nous	-
13	950056		Retainer, Cover		Appelez-nous	-
14	1168726		Evaporator		Appelez-nous	-
15	WP489069		Screw, 8 X 1/2 (4)   (Replaces: 488480)			Immediately	$ 7.56
16	680975		Washer		Appelez-nous	-
17	24364001		Clip, Compressor		Appelez-nous	-
19	1168830		Harness, Wire		Appelez-nous	-
20	1168722		Grommet (4)		Appelez-nous	-
21	1168654		Base		Appelez-nous	-
22	1164241		Caster (4)		Appelez-nous	-
25	1164774		Compressor (complete Assembly)		Appelez-nous	-
26	1168761		Pan, Drain		Appelez-nous	-
27	854624		Bend, Return (9)		Appelez-nous	-
29	1162650		Insulation, Restrictor Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
